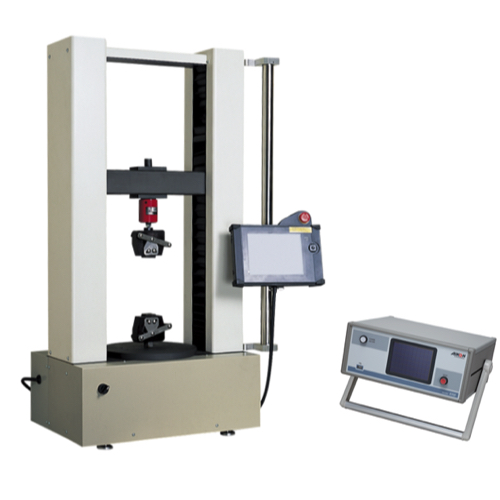

Aikoh 1840KT/500 Large Precision Force Tester (5kN (500kgf); 700mm)

Max. force: 5kN (500kgf)

Force accuracy: Depends on the load cell used.

Force measuring amplifier: MODEL-1018

Controller: Built in the tester.

Test speed: 0.1～600mm/min

Speed changing: Numeric input on the touch panel

Stroke: 700mm

Distance between test center and column: 175mm

Table size: φ300mm, center M20 x 1.5

Drive motor: Servo motor

Detector: Rotary encoder

Display accuracy: 0.1mm

Dimensions: W600×H1340×D580mm

Stand mass: Approx. 185kg

Amplifier mass: Approx. 5.2kg

Power supply: 100 VAC/200 VAC, single phase, 10A

Standard set: Tester, force measuring amplifier MODEL-1018, touch panel, load cell 1 piece

Options: Additional load cell, jig/fixture, software, column extension, safety cover
