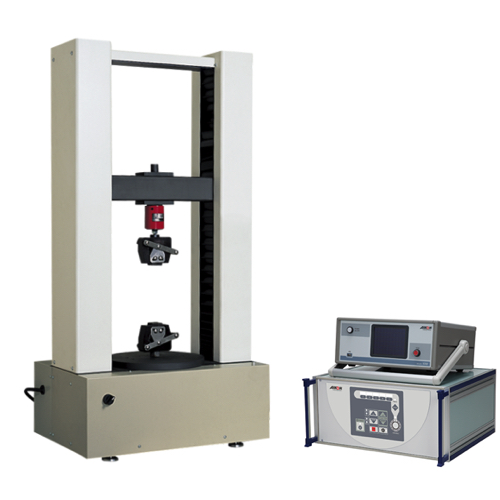

Max. force: 5kN (500kgf)
Force accuracy: Depends on the load cell used.
Force measuring amplifier: MODEL-1018
Controller: MODEL-4502K
Test speed: 1～600mm/min
Speed changing: 5 steps or stepless
Stroke: 700mm
Distance between test center and column: 175mm
Table size: φ300mm, center M20 x 1.5
Drive motor: Servo motor
Detector: Rotary encoder
Display accuracy: 0.1mm
Dimensions: W600×H1340×D400mm
Stand mass: Approx. 170kg
Amplifier mass: Approx. 5.2kg
Power supply: 100 VAC/200 VAC, single phase, 10A
Standard set: Tester, force measuring amplifier MODEL-1018, controller Model 4502K, load cell 1 piece
Options: Additional load cell, jig/fixture, software, column extension, speed 15-step setting, safety cover
