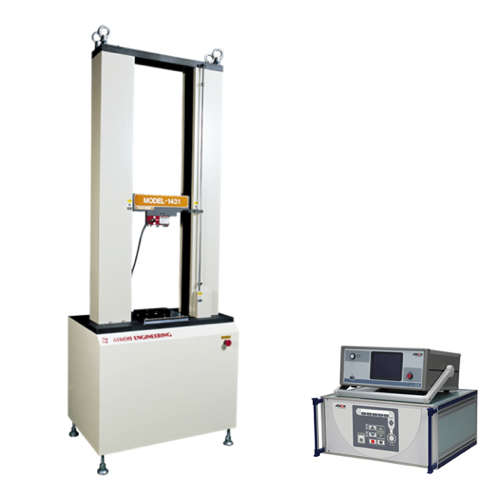

Max. force: 200kN (20000kgf)
Force accuracy: Depends on the load cell used.
Force measuring amplifier: MODEL-1018
Controller: MODEL-4502K
Test speed: 0.5～300mm/min
Speed changing: 15 steps or stepless
Stroke: 1000 mm (load cell included)
Distance between test center and column: 190mm
Table size: φ290mm; M20×1.5
Drive motor: Servo motor
Detector: Rotary encoder
Display accuracy: 0.1 mm (resolution 0.01 mm)
Dimensions: W1350×H2535×D1010mm
Stand mass: Approx. 1400 kg
Amplifier mass: Approx. 5.2 kg
Power supply: 3-phase, 200 VAC, 10 A
Standard set: Tester, force measuring amplifier MODEL-1018, controller Model 4502K, load cell 1 piece
Options: Additional load cell, jig/fixture, software, safety cover
