Max. force: 2kN (200kgf)
Force accuracy: Depends on the load cell used.
Force measuring amplifier: MODEL-1018
Controller: Built in
Test speed: 5～125mm/min
Speed changing: 5 steps or stepless
Stroke: 150mm
Distance between test center and column: 125mm
Table size: φ200 mm, center M10 x 1.5
Drive motor: DC brushless motor
Drive motor: External linear gage, resolution 0.001 mm
Display accuracy: 0.05mm
Dimensions: W356×H900×D314mm
Stand mass: Approx. 41kg
Amplifier mass: Approx. 5.2kg
Power supply: Single phase, 100 VAC – 240 VAC, 1A

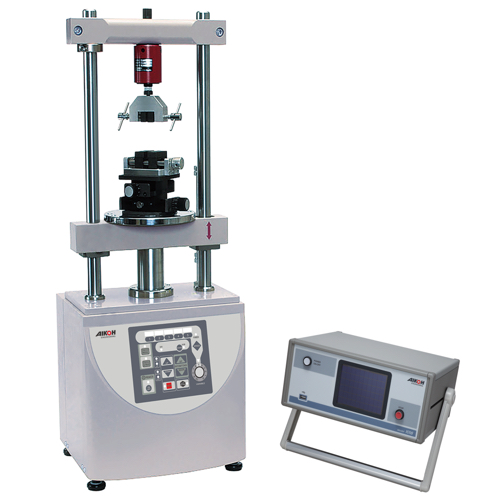

Standard set: Tester, force measuring amplifier MODEL-1018, load cell 1 piece, linear gage
Options: Additional load cell, jig/fixture, software, column extension
