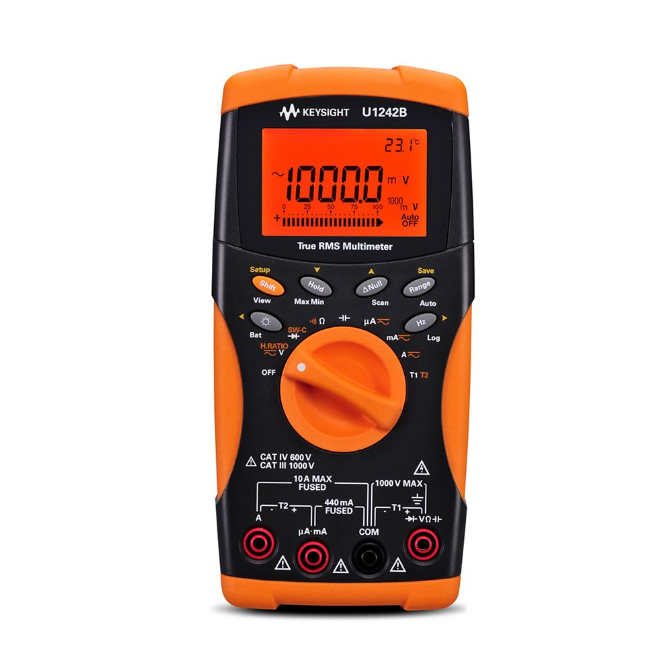

KEYSIGHT U1242B Digital Multimeter (0.09%; Harmonic Ratio)

- Voltage DC: 1000.0mV, 10.000V, 100.00V, 1000.0V /0.09%

- Voltage AC (True RMS):1000.0mV, 10.000V, 100.00V, 1000.0V /1%

- Current DC: 1000.0μA, 10000μA, 100.00mA, 440.0mA, 10.000A /0.1%

- Current AC (true RMS): 1000.0μA, 10000μA, 100.00mA, 440.0mA, 10.000A /1%

- Resistance: 1000.0Ω, 10.000kΩ, 100.00kΩ, 1000.0kΩ, 10.000MΩ, 100.00MΩ / 0.3-1.5%

- Diode: 1V /0.3%

- Capacitance: 1000.0nF, 10.000μF, 100.00μF,1000.0μF, 10.000mF

- Frequency:100.00Hz, 1000.0Hz, 10.000kHz, 100.00kHz, 1000.0kHz /0.03%

- Thermocouple type(T1/T2, T1-T2): –40 to 1000 oC/ 1% (option)

- Harmonic ratio: 0.0% to 99.9%

- Switch counter: yes

- 4-20mA % Scale: Yes

- Data logging: 100 manual, 200 interval point

- PC connectivity: IR-USB (option)

- Connectivity: IR-to-Bluetooth (option)

Power supply: Battery 4 x 1.5 V AAA

Dimensions: (H x W x D): 193.8 mm x 92.2 mm x 58.0 mm

Included Accessories: Test Lead Set; Quick Start Guide; 4 x 1.5 V Batteries; Certificate of Calibration (CoC)

Datasheet

Brochures

Optional Accessories

U1583B: AC current clamp

U1186A: Thermocouple (K-type, 1m) and adapter

U1185A: Thermocouple (J-type) and adaptor

U1164A: Test probes, fine tip

U1169A: Test Probe Leads (with 19-mm tips and 4-mm tips)

U1174A: Carrying case, soft

U1172A: Transit case for handheld DMM, aluminum-clad

U1171A: Magnetic hanging kit

U1181A: Immersion probe type K

U1182A: Surface probe, industrial

U1183A: Probe, air

U1184A: Adaptor, temperature probe

U1163A: Grabbers, SMT

U1162A: Alligator clip

U1187A: Thermocouple (K-type, 3.5m) and adapter

U1176A: LED flash light

U1180A: T/C adapter + lead kit, J and K type

U1179A: IR connectivity bracket for U1240 Series HHDMM

U1177A: Infrared (IR)-to-Bluetooth class 2 (10meter) adapter

U1168B: Test lead kit

U1117A: Infrared (IR)-to-Bluetooth class 1 (100meter) adapter with Mfi

U1115A: Bluetooth class 1 (100meter) remote logging display

U1118A: Remote connectivity kit (100meter) with U1115A and U1117A

U1173B: IR-USB cable, all U1200 series handheld multimeter VOLT: DC 3.3V - 5V
