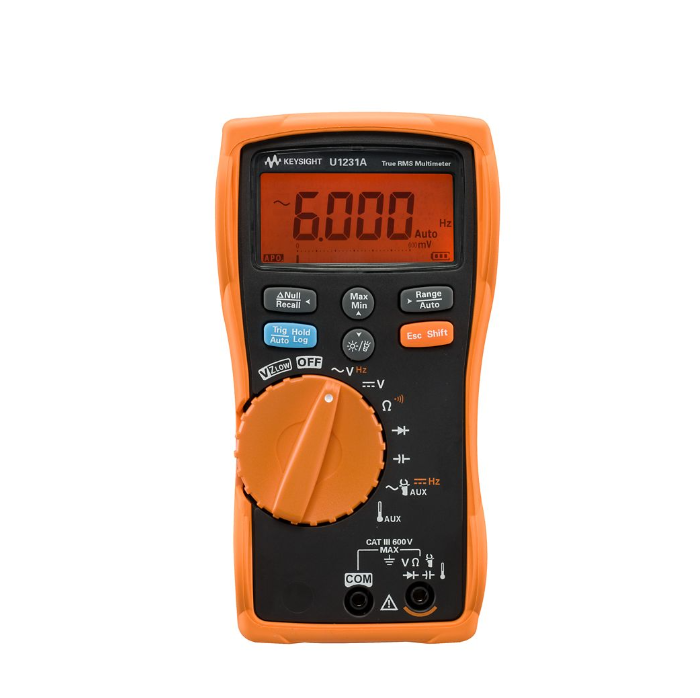

KEYSIGHT U1231A Digital Multimeter (0.5%)

- Voltage DC: 600 mV, 6 V, 60V, 600V /0.5%

Resolution: 0.1 mV, 0.001 V, 0.01 V, 0.1 V

- Voltage AC True RMS :600 mV, 6 V, 60V, 600V /1%

Resolution: 0.1 mV, 0.001 V, 0.01 V, 0.1 V

- Resistance: 600 Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ, 60 MΩ /0.9%

Resolution: 0.1Ω, 0.001kΩ, 0.01kΩ, 0.1kΩ, 0.001MΩ, 0.01MΩ

- Diode: 2 V/0.9%

Resolution: 0.001 V

- Capacitance: 1000 nF, 10 μF, 100 μF, 1000 μF, 10 mF /1.9%

Resolution: 1 nF, 0.01 μF, 0.1 μF, 1 μF, 0.01 mF

- Frequency: 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz /0.1%

Resolution: 0.01 Hz, 0.1 Hz, 1 Hz, 10 Hz

- Built-in: Flash light

- Zlow - Low impedance mode: yes

- PC connectivity: IR-USB (option)

- Connectivity: IR-to-Bluetooth (option)

Power supply: Battery 4 x 1.5 V AAA

Dimensions: (H x W x D): 169 mm x 86 mm x 52 mm

Included Accessories: Test Lead Set; Quick Start Guide; 4 x 1.5 V Batteries; Certificate of Calibration

Datasheet

Brochures

Optional Accessories

U1167A: Test lead, 4mm tips probes; CAT III 1000 V, CAT IV 600 V, 15 A

U1176A: LED flash light

U1174A: Carrying case, soft

U1171A: Magnetic hanging kit

U1169A: Test Probe Leads (with 19-mm tips and 4-mm tips)

U1177A: Infrared (IR)-to-Bluetooth class 2 (10meter) adapter

U1166A: Test lead

U1168B: Test lead kit

U1586B: Temperature module

U1117A: Infrared (IR)-to-Bluetooth class 1 (100meter) adapter with Mfi

U1115A: Bluetooth class 1 (100meter) remote logging display

U1118A: Remote connectivity kit (100meter) with U1115A and U1117A

U1173B: IR-USB cable, all U1200 series handheld multimeter VOLT: DC 3.3V - 5V
