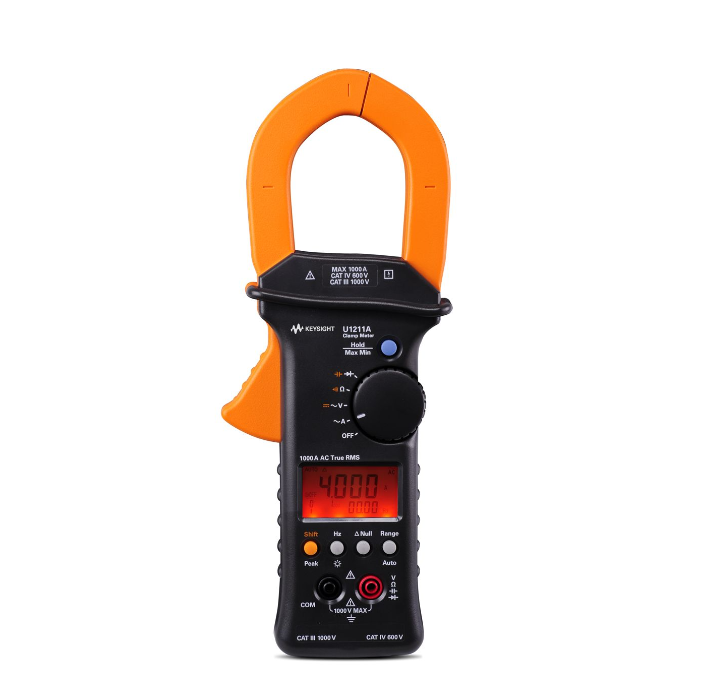

KEYSIGHT U1211A Clamp Meter (AC 1000A; True RMS)

- True RMS: AC

- Voltage DC: 400 V, 1000 V /0.5%

Resolution: 0.1 V, 1 V

- Voltage AC: 400 V, 1000 V /1%

Resolution: 0.1 V, 1 V

- Resistance: 400 Ω, 4 kΩ /0.5%

Resolution: 0.1 Ω, 0.001 kΩ

- Diode: Yes

- Current AC: 40 A, 400 A, 400~700 A, 700~1000 A /1%

Resolution: 0.01 A, 0.1 A, 1 A, 1 A

- Capacitance: 400 μF, 4000 μF /2-3%

Resolution: 0.1 μF, 1 μF

- Frequency: 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz, 999.9 kHz /0.2%

Resolution: 0.01 Hz, 0.1 Hz, 0.001 kHz, 0.01 kHz, 0.1 kHz

Power supply: Battery 9V

Dimensions: 106 mm (W) X 273 mm (L) X 43 mm (H)

Included Accessories: Test leads, 4-mm probes, Soft carrying case, Quick Start Guide, Certificate of Calibration (CoC)

Datasheet

Brochures

Optional Accessories:

U1175A: Soft carrying case

U1169A: Test Probe Leads (with 19-mm tips and 4-mm tips)

U1163A: Grabbers, SMT

U1164A: Test probes, fine tip

U1162A: Alligator clip

U1176A: LED flash light

U1168B: Test lead kit

U1117A: Infrared (IR)-to-Bluetooth class 1 (100meter) adapter with Mfi

U1115A: Bluetooth class 1 (100meter) remote logging display

U1118A: Remote connectivity kit (100meter) with U1115A and U1117A

U1173B: IR-USB cable, all U1200 series handheld multimeter VOLT: DC 3.3V - 5V
