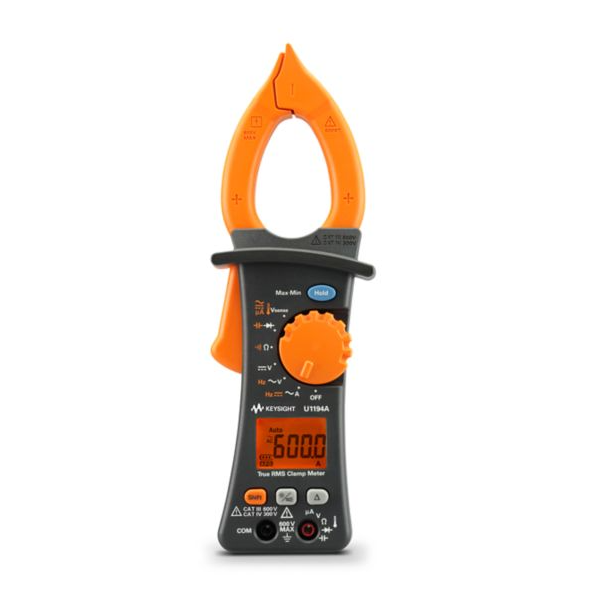

KEYSIGHT U1194A Clamp Meter (AC/DC 600A; True RMS; Frequency)

- True RMS: yes

- Voltage DC: 60 V, 600 V /0.5%

Resolution: 0.01 V, 0.1 V

- Voltage DC: 60 V, 600 V /1.2%

Resolution: 0.01 V, 0.1 V

- Resistance: 600 Ω, 6 kΩ, 60 kΩ /0.8%

Resolution: 0.1 Ω, 0.001 kΩ, 0.01 kΩ

- Diode: yes

- Current DC:6 μA, 600 μA /1%

Resolution: 0.01 μA, 0.1 μA

- Current DC: 60 A, 600 A /2%

Resolution: 0.01 A, 0.1 A

- Current AC:6 μA, 600 μA /1%

Resolution: 0.01 μA, 0.1 μA

- Current AC: 60 A, 600 A /2%

Resolution: 0.01 A, 0.1 A

- Capacitance: 600 μF, 6 mF /2%

Resolution: 0.1 μF, 0.001 mF

- Temperature Type K: -40-1200 oC

- Frequency: 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz /0.5%

Resolution: 99.99 kHz, 0.1 Hz, 0.001 kHz, 0.01 kHz

Power supply: 2 x 1.5 V AAA

Dimensions: 77.1 x 238.0 x 38.6

Included Accessories:Test lead set; K-type thermocouple; Soft carrying case; Quick start guide; Batteries; Certificate of calibration

Datasheet

Brochures

Optional Accessories

U1188A: Thermocouple, K-type

U1187A: Thermocouple (K-type, 3.5m) and adapter

U1186A: Thermocouple (K-type, 1m) and adapter

U1184A: Adaptor, temperature probe

U1183A: Probe, air

U1182A: Surface probe, industrial

U1181A: Immersion probe type K

U1178A: Carrying case, soft

U1176A: LED flash light

U1169A: Test Probe Leads (with 19-mm tips and 4-mm tips)

U1168B: Test lead kit
