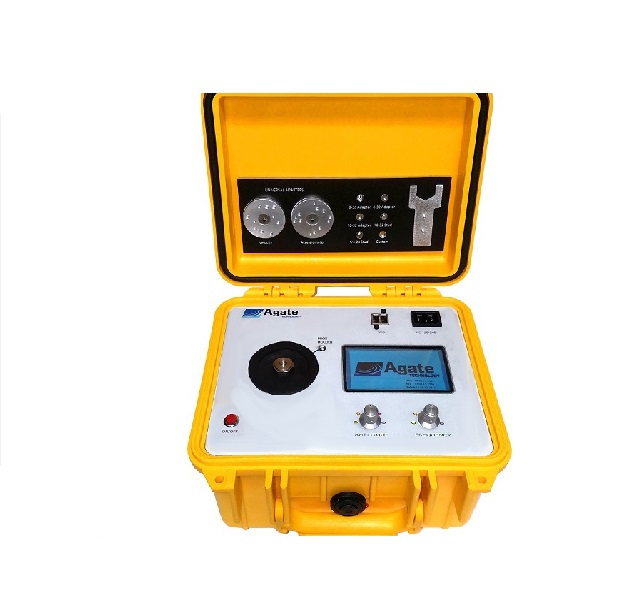

Agate AT-2040 Portable Vibration Calibrator (7 Hz to 10 kHz)

Frequency Range (operating, 100 gram payload): 7 Hz to 10 kHz

420 to 600 k cpm

Maximum Amplitude (100 Hz with no payload): 20 g pk (196 m/s2 pk)

Maximum Payload: 750 gram

Sensor Test Method: Automatic Sweep or Manual Operation

Sensor select: Built in transducer library

Calibration Sheets: Automatic Creation to memory

Accuracy

Acceleration (30 Hz to 2 kHz): ±3%

Acceleration (7 Hz to 10 kHz): ±1 dB

Velocity (10 Hz to 1000 Hz): ±3%

Displacement (30 Hz to 150 Hz): ±3%

Amplitude Linearity (100 gram payload, 100 Hz): < 1% up to 10 g pk

Waveform Distortion (100 gram payload, 30 Hz to 2 kHz): < 5% THD (typical) up to 5 g pk

READOUT

Acceleration (peak and RMS): g pk, g RMS, m/s pk, m/s RMS

Velocity (peak and RMS): mm/s pk, mm/s RMS, in/s pk, in/s RMS

Displacement (peak to peak): mils p-p, μm p-p

Frequency: Hz, CPM

INPUT/OUTPUT

Test Sensor Inputs Charge, IEPE, Velocity, Proximity

4-20ma transducer,

4-20ma vibration transmitters

Bias Measurement: Yes

Built in Excitation current and supply voltages for transducers: IEPE Current Source

External Source In (Max): 1V AC RMS

Transducer Simulation Charge, IEPE bias and signal,

4-20ma loop simulator,

Proximity probe driver (axial and radial)

Monitor Reference Out : 10 mv/G (nominal)

POWER

Internal Battery (sealed solid gel lead acid): 12 VDC, 6 amp hours

AC Power (for recharging battery): 110-240 Volts, 50-60 Hz

Operating Battery Life

100 gram payload, 100 Hz 1 g pk: 10 hours

100 gram payload, 100 Hz 10 g pk: 1 hours

PHYSICAL

Sensor Connectors: BNC, DIN, Terminal strip

Weight: 15.2 lb (6.9 kg)

Sensor Mounting Platform Thread Size: 1⁄4-28

Operating Temperature: 0°C-50°C (32°F-122°F)

Dimensions (H x W x D): 8.5 in x 12 in x 10 in (22 cm x 30.5 cm x 28 cm)

Display: 4.3 inch LED

Controls: 2 dials with touch screen

Included:

Power Cable

Short Handle Wrench

Micro Dot (10-32) to BNC Cable

¼-28 Stud

10-32 UNF Stud

2-56 UNC Adapter

6-32 UNC Adapter

10-32 UNF Adapter

Universal Velocity Adapter Disc

Universal Accelerometer Adapter Disc

Datasheet
