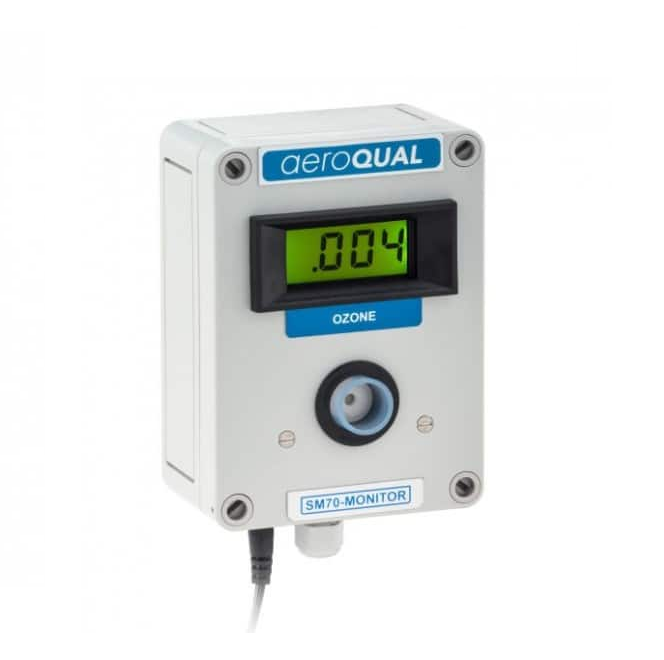

Aeroqual SM70 Fixed Indoor Air Quality Monitor

Applications: Ozone monitor for real-time network monitoring, health and safety and process control.

Measurement units: Gas: ppm

Reading functions: Instant

Sensor head type: Sensor head Replaceable/ Removable

Sampling method: Active sampling via sensor board fan

Analog output: 0-5 Vdc (LZ sensor board), 0-1.5 Vdc (UZ sensor board)

External signal type: Relay output (24 Vdc; 5 A max.)

External signal functions: Factory configured

Connectors: Screw type

Alarm set points: Factory configured single point

Control set point: Factory configured

Communication: RS232 and RS485 (Aeroqual proprietary protocol)

Interface (optional): RS-485 and RS-232

Power (user supplied): 12 Vdc; 800 mA; Plug-in Vdc power adaptor supplied

Monitor base/enclosure material and rating: Flame resistant PS I IP20 NEMA 1 equivalent

Size (with sensor head) (L x W x H): 130 x 94 x 57 mm (5 ⅛ x 3 ¾ x 2 ¼ in)

Weight (Incl. Sensor): 270 g; 9.5 oz (excludes AC power adaptor)

Environmental operating conditions: 0°C to 40°C 32°F to 104°F

Approvals: Part 15 of FCC Rules, EN 61000-6-3: 200, EN 61000-6-1: 2001
