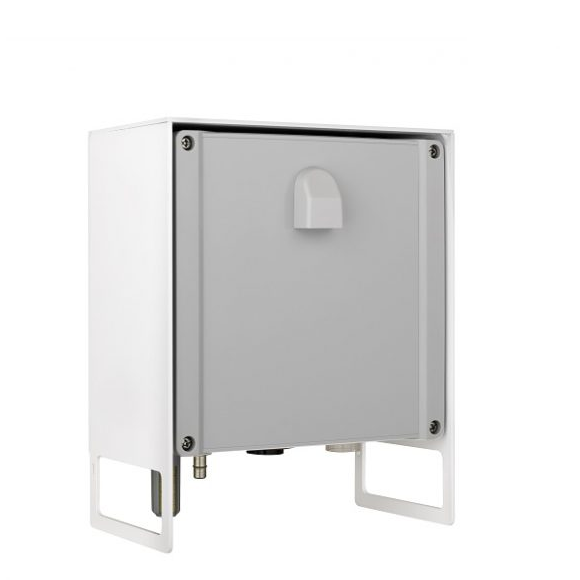

Aeroqual AQY 1 Micro Air Quality Monitoring System

Control System: Single board computer, 1.2GHz quad-core, 1GB SDRAM, 16GB SDHC Storage, Linux Operating System

Communications: Standard: WIFI, 3/3.5/4G cellular modem

Software:

Connect: for setup and field service. Installed on device and accessed via web browser

Cloud: for instrument and data management. Runs on secure ‘cloud’ servers, accessed via web

browser.

Features: configuration, diagnostics, journal, calibration and data acquisition, plus SMS and email alerts, auto data export via FTP and email, and data export API

Data logging: 32GB USB Stick (>2 years data storage)

Averaging period: 1 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 hr, 2 hr, 4 hr, 8 hr, 12 hr, 24 hr

Power system:

12VDC plug pack (90 to 260VAC input) 24W (rated for -10°C to 40°C)

Cable: 5m

Enclosure: Weather proof IP33 with solar shield

PM Sampling System:

Inlet: 4cm anti-static inlet

Sampling: 5V DC fan

Gas Sampling System:

Inlet: PTFE, stainless steel

Sampling: 5V DC fan

Dimensions: 215H x 170W x 125D mm (including solar shield armour & mounting brackets)

Weight: <1.3 kg

Environmental operating range: -10°C to +40°C

Mounting: Mounting bracket included for pole, tripod or wall

Life expectancy:

System: 5 years

Sensors: ~12months based on 0-50 μg/m3 annual average PM10

Other measurements: Temperature: -40°C to 125°C; Relative Humidity: 0 to 100%; Dewpoint: -30°C to 50°C

Included:

PM2.5 optical particle sensor (0 to 1000 μg/m3) with RH correction

Ozone (0-0.2 ppm O3) GSS gas sensor with integrated zero cycle

Nitrogen Dioxide (0-0.5 ppm NO2) gas sensor with O3 interference correction

External temperature and humidity sensor, with calculated dew point

IP33 enclosure with integrated aluminium solar shield armor

12VDC plug pack: 24W, 5m cable

Pole and wall mount brackets

Communications: WIFI, Cellular 3/3.5/4G modem (SIM and data plan excluded)

Single board computer, 1.2GHz quad-core, 1GB SDRAM, 16GB SDHC storage

Aeroqual Connect instrument operating software

Documentation: user guide, factory test report
