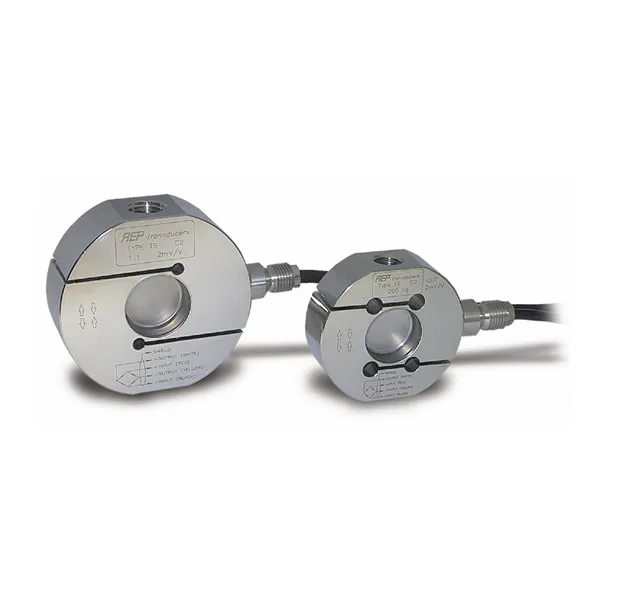

AEP Transducers TS Load cell (OIML R60; Class C2; IP68 IP65; 2T)

Accuracy Class: OIML R60: C2

Legal Divisions: 2000

Nominal Load (Emax): 2T

Min. Verification Interval (Vmin):  Emax / 10000

Combined Error: ≤ ±0.023%

Non-Repeatability: ≤ ±0.015%

Zero Return Over 30 Min.: ≤ ±0.025%

Creep At Nominal Load::

a) over 30 min.: ≤ ±0.025%

b) over 20 and 30 min.: ≤ ±0.005%

Temperature Effect (10 °C):

a) on zero: ≤±0.028%

b) on sensitivity: ≤±0.012%

Nominal Sensitivity: 2 mV/V

Sensivity Tolerance: ≤ ± 0.1 %

Input Resistance: 420 ± 20Ω

Output Resistance: 350 ± 2Ω

Insulation Resistance: > 5 GΩ

Zero Balance: ≤ ±1 %

Recomended Supply Voltage: 10 V

Nominal Supply Voltage: 1-15 V

Maximum Supply Voltage: 18 V

Mechanical Limit Values Referred To Nominal Load::

a) minimum load: 0%

b) service load: 120%

c) max permissible load: 150%

d) breaking load: >300 %

e) max transverse load: 100%

f) max permissible dynamic load: 50%

Displacement At Nominal Load: ~ 0.2 mm

Reference Temperature: +23 °C

Temperature Nominal Range: -10/+40 °C

Service Temperature: -20/+70 °C

Storage Temperature: -20/+80 °C

Weight : ~ 1.2 kg

Protection Class (En 60529): IP68 (100h at 1m water column); IP65 (10, 25, 50 kg silicon cover)

Execution Material: Acciaio Inox / Stainless Steel

Cable Length: 5 m (on request 10 m)
