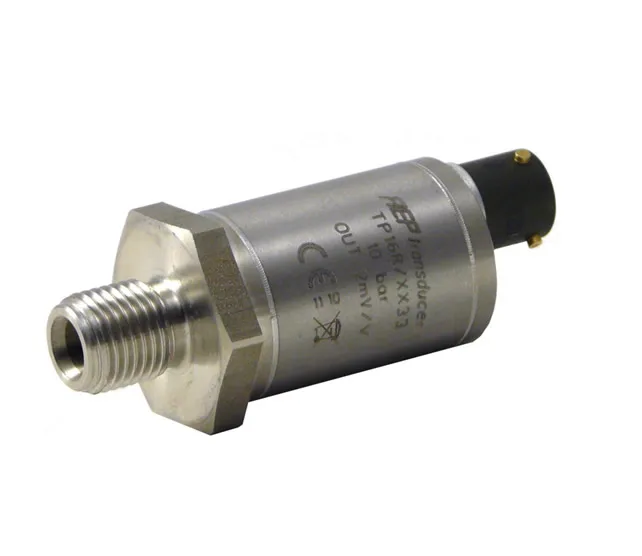

AEP Transducers TP16 Pressure transducer

Relative Pressure (R) (Zero At Atmospheric Pressure): 5 - 10 – 20 bar

Absolute Pressure (A) (Zero At Pressure To Absolute Vacuum): 50 bar; 100 - 250 - 350 500 - 700 -*1000 *1500 -*2000 bar

Linearity And Hysteresis: ≤ ± 0.15 %; ≤ ± 0.10 %

Temperature Effect (1°C):

a) on zero: ≤ ± 0.015%

b) on sensitivity: ≤ ± 0.015%

Nominal Sensitivity : 1mV/V ≤ ± 0.1%; 2mV/V ≤ ± 0.1%

Nominal Power Supply: 1-15V

Max. Power Supply: 18V

Input Resistance: 440 ± 20Ω; 650 ± 20Ω

Output Resistance: 350 ± 2Ω; 500 ± 2Ω

Insulation Resistance: >2 GΩ

Zero Balance: ≤ ± 1%

Response Frequency: from 20 to 100kHz

Limit Mechanical Values:

Referred To Nominal Pressure::

a) service pressure: 100%

b) max. permissible pressure: 150%

c) breaking pressure: >300%

d) highly dynamic pressure: 75%

Reference Temperature: +23°C

Working Temperature Range: -10/+110°C

Storage Temperature Range: -20/+110°C

Standard Process Coupling: 1/4"Gas (*1/2” G) Maschio /BSP Male

Recommended Gasket: USIT A 63-11

Tightening Wrench: 27mm

Tightening Torque: 28 Nm

Protection Class (En 60529): IP67

Sensor Execution Material: INOX 17-4 PH

Electrical Connection: MIL4M Connector with 5m meter cable

Datasheet
