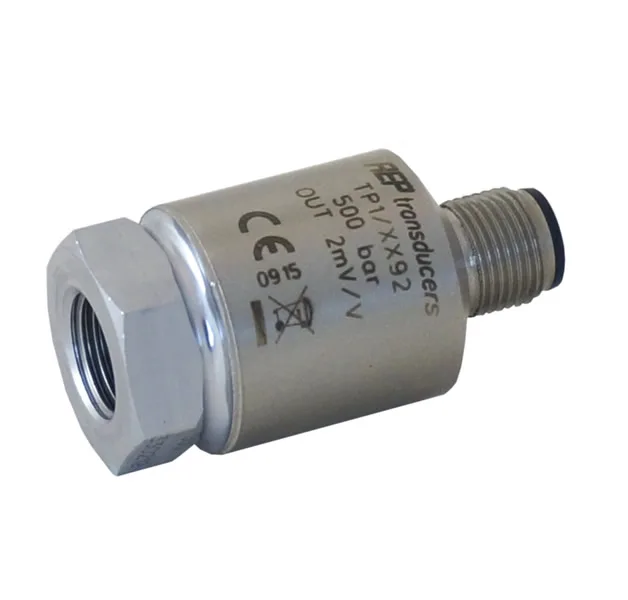

AEP Transducers TP1 Pressure transducer

Relative Pressure (R) (Zero At Atmospheric Pressure): 10 bar ; 20 bar

Absolute Pressure (A) (Zero At Pressure To Absolute Vacuum): 50-100-250 bar ; 350-500-700 bar

Linearity And Hysteresis: ≤ ± 0.50 %; ≤ ± 0.20 %

Temperature Effect (1°C):

A) On Zero: ≤ ± 0.020 %

B) On Sensitivity: ≤ ± 0.015 %

Nominal Sensitivity: 1 mV/V≤ ± 0.5% 2 mV/V ≤ ± 0.5%

Nominal Power Supply: 1-15 V

Max. Power Supply: 18 V

Input Resistance: 560 Ω typical

Output Resistance: 500 Ω typical

Insulation Resistance: >2 GΩ

Zero Balance: ≤ ± 0.5 %

Response Frequency: from 20 to 100 kHz

Limit Mechanical Values Referred To Nominal Pressure::

A) Service Pressure: 100%

B) Max. Permissible Pressure: 150%

C) Breaking Pressure: > 300 %

D) Highly Dynamic Pressure: 75%

Reference Temperature: +23 °C

Working Temperature Range: -10 / +110 °C

Storage Temperature Range: -20 / +110 °C

Standard Process Coupling: 1/4"Gas FEMMINA /BSP FEMALE

Recommended Gasket: USIT A 63-11

Tightening Wrench: 22 mm

Tightening Torque: 25 Nm

Protection Class (En 60529): IP67

Sensor Execution Material: INOX 17-4 PH

Electrical Connection:

M12×1 Male connector (Complete of PVC molded CABLE, shielded): Length 3 m
