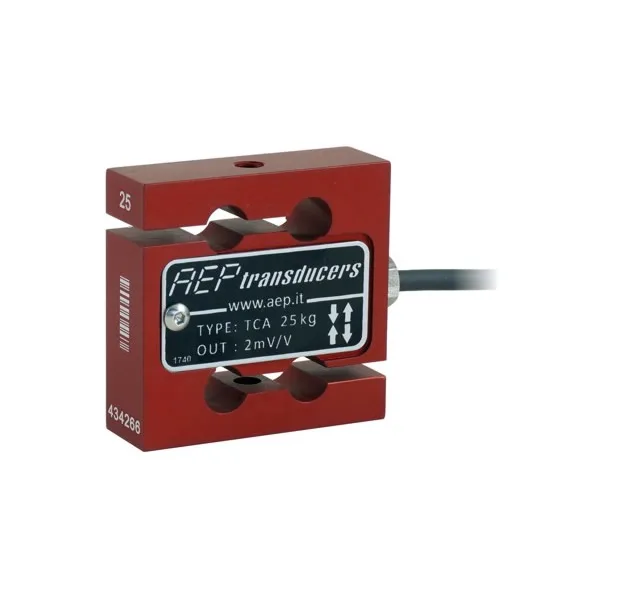

Nominal Load: 25 kg
Nominal Sensitivity: 2 mV/V
Sensitivity Tolerance: ≤ ± 0.1%
Temperature Effect (10 °C):
a) on zero: ≤ ± 0.025 %
b) on sensitivity: ≤ ± 0.021 %
Linearity: ≤ ± 0.03 %
Hysteresis: ≤ ± 0.03 %
Repeatability: ≤ ± 0.01 %
Input Resistance: 440 ± 20 Ω
Output Resistance: 350 ± 2 Ω
Insulation Resistance: >5 GΩ
Zero Balance: ≤ ± 1 %
Recommended Supply Voltage: 10 V
Nominal Supply Voltage: 1-15 V
Maximum Supply Voltage: 18 V
Mechanical Limit Values Referred To Nominal Load::
a) service load: 120%
b) max permissible load: 150%
c) breaking load: >300 %
d) max transverse load: 50%
e) max permissible dynamic load: 50%
Displacement At Nominal Load: ~ 0.3 mm
Reference Temperature: +23 °C
Temperature Nominal Range: -10 / +40 °C
Service Temperature: -20 / +70 °C
Storage Temperature: -20 / +80 °C
Weight: ~ 0.3 kg
Protection Class (En 60529): IP20
Execution Material: Alluminio / Aluminum
Cable Length: 3 m
