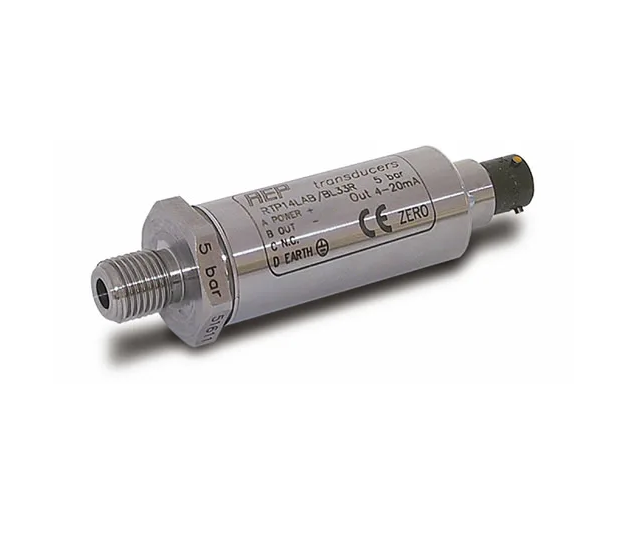

AEP Transducers LabTP14 Pressure transducer (20 bar)

Gauge Pressure (R) (Zero At Atmospheric Pressure): 1 - 2.5 - 5 - 10 - 20 bar

Absolute Pressure (A) (Zero At Absolute Vacuum Pressure): 1 – 2.5 – 5 – 10 – 20 bar; 50 - 100 – 250 - 350 - 500 - 700 bar; *1000-*1500-*2000 bar

Linearity And Hysteresis : ≤ ± 0.05 %

Temperature Effect (1°C):

a) on zero: ≤ ± 0.005%

b) on sensitivity: ≤ ± 0.005%

Nominal Sensitivity : 4-20mA (3 wires): 0-5 V, 0-10 V

Calibration Tolerance : ≤ ± 0.1%

Nominal Power Supply : 4-20mA and 0-5V : 12-24Vdc; 0-10V : 15-24Vdc

Max. Power Supply: 28Vdc

Max. Absorption:

a) 3 wires: 30mA

b) 2 wires: 20mA

Loading Resistance::

a) tension: min. 3KΩ

b) current: from 0 to 470Ω

Insulation Resistance: >2 GΩ

Zero Balance: ± 10% ADJ.

Response Frequency: from 0.5 to 5 kHz

Limit Mechanical Values::

a) service pressure: 100%

b) max. permissible pressure: 150%

c) breaking pressure: >300%

d) highly dynamic pressure: 75%

Reference Temperature: +23°C

Working Temperature Range: -10/+70°C

Process Coupling: 1/4"Gas (*1/2"Gas) Maschio / BSP Male

Tightening Wrench: 27 mm

Tightening Torque: 28 Nm

Protection Class (En 60529): IP65

Sensor Execution Material: INOX 17-4 PH

Electrical Connection: MIL4M Connector with 3-meter cable
