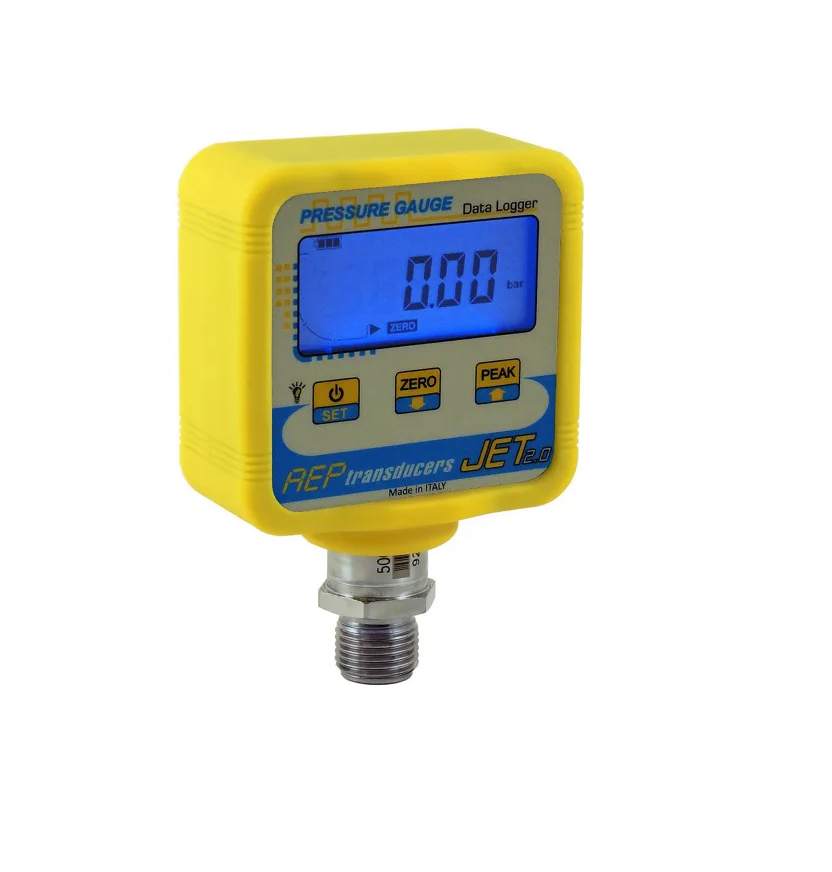

AEP Transducers JET Digital Pressure Gauge (10 bar)

Standard Version Indications

Type: ARV

Nominal Pressure: 10 bar

Display: 10 bar

Resolution: 0.01 bar

Main Features:

Accuracy (Linearity And Hysteresis) : ≤ ± 0.20 % F.S. STANDARD version

Pressure Units : bar – mbar – psi – Mpa – kPa – kg/cm2 – mHg - mmHg – mmH2O – mH2O

Temperature Indication: Unit °C - °F

a) Resolution: 0.1 °C

b) Accuracy: ± 1 °C

Reference Temperature: 0 … +50 °C

Operating Temperature: -10 … +60 °C

Relative Umidity: < 90 % not condensed

Temperature Effect (1 °C):

a) on zero: ≤ ± 0.002%

b) on sensitivity: ≤ ± 0.002%

Internal Resolution: 16 bit

Conversions Per Seconds: 10 (100ms)

Internal Resolution: 16 bit

Readings Per Second (0 Filter): 10 (100ms)

Digital Filter Programmable: 0 … 99

Resolution Programmable: 1, 2, 5, 10

Zero Function: Active up to 100% F.S.

Peak Function: Active in PRESSURE and VACUUM

Usb Programmable Baud Rate: 19200, 9600, 4800

Data Logger Function:

Max Storing Frequency: 1 measure for second

Max Storing Pressure Measures: 60.000 Records

Max Storing Pressure+ Temperature: 30.000 Records

Communication: USB 2.0

Max Distance: 5m

Display: 13 mm (custom LCD)

Backlight Function: Programmable from 1s to 60s (0 disabled)

Power Supply: RECHARGEABLE inside BATTERY

Autonomy: ~ 3 months (Backlight and wireless disabled)

Recharge Battery: Li-Ion 3.7V 1100mA/h

Time Recherge: ~ 8 hours (With PC or USB power supply)

Mechanical Limit Values::

a) service pressure: 100% F.S.

b) limit pressure: 150% F.S.

c) breaking pressure: >300% F.S.

d) highly dynamic pressure: 75% F.S.

Process Coupling: 1/2" G Male

Seal Recommended: USIT A 63-18

Tightening Wrench: 27 mm

Tightening Torque: 28 Nm

Protection Class (EN 60529): IP40

Material Sensor: 17-4 PH STAINLESS STEEL

Container Material: ALUMINUM
