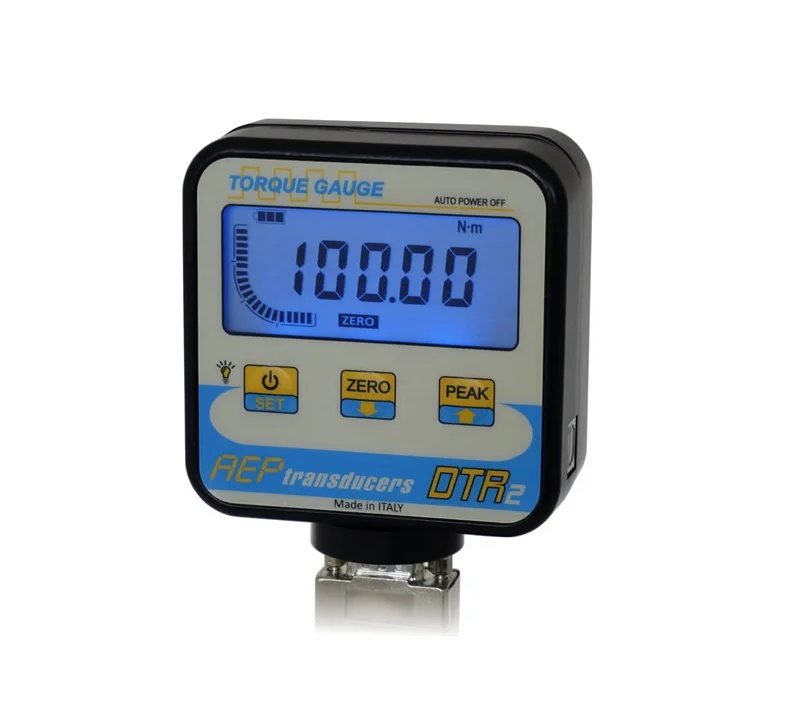

AEP Transducers DTR2 Digital Torque Indicator

Precision Class: ≤± 0.020 %

Linearity And Hysteresis: ≤± 0.015 %

Input Signal: ± 2 mV/V

Torsiometri Collegabili: N° 1 from 350 Ω to 700 Ω 4wires

Strain Gauge Excitation : 3V ± 3%

Risoluzione Interna: 24 bit

Standard Resolution (2Mv/V): ± 20.000 div

Direct Reading: Conversion Per Second: 10 Hz

Peak Mode: Conversion Per Second: 4800 Hz

Reference Temperature: +23 °C

Service Temperature Range: 0 / +50 °C

Storage Temperature Range: -10 / +60 °C

10°C Temperature Effect:

A) On Zero: ≤± 0.015 %

B) On Sensitivity: ≤± 0.005 %

Custom Lcd Display:

Character Height 16 Mm:

Programmable Backlight From 1 To 60 Seconds:

Backlight: Led Blu:

Analog Bar Indication:

Programmable Resolution: 1, 2, 5, 10

Programmable Digital Filter: from 0 to 10 (Direct reading)

Zero Function: 100% F.S.

Peak Function: Clockwise and counterclockwise

First Peak Function Programmable: from 1 to 99% F.S.

Peak Auto Reset Programmable: clear the PEAK after a set time

Auto Power Off Function: From 1 to 30 minutes (no changes)

Key Block Function (Lock): To protect parameters from changes

Measurement Unit : kN•m - N•m - N•cm - daN•m - kgf•m -ozf•ft - lbf•ft - ozf•inch - lbf•inch

Communicaton Port: USB 2.0

Mode Continuos Transmission Mode: 4800 values per second

On Demand Transmission: On demand

Max Distance: 5 m

Power Supply By Internal Battery: Li-Ion 1800mA7h 3.6V RECHARGEABLE

Battery Recharge: Through USB

Autonomy: 80 hours

Time To Recharge: ~ 8 hours
