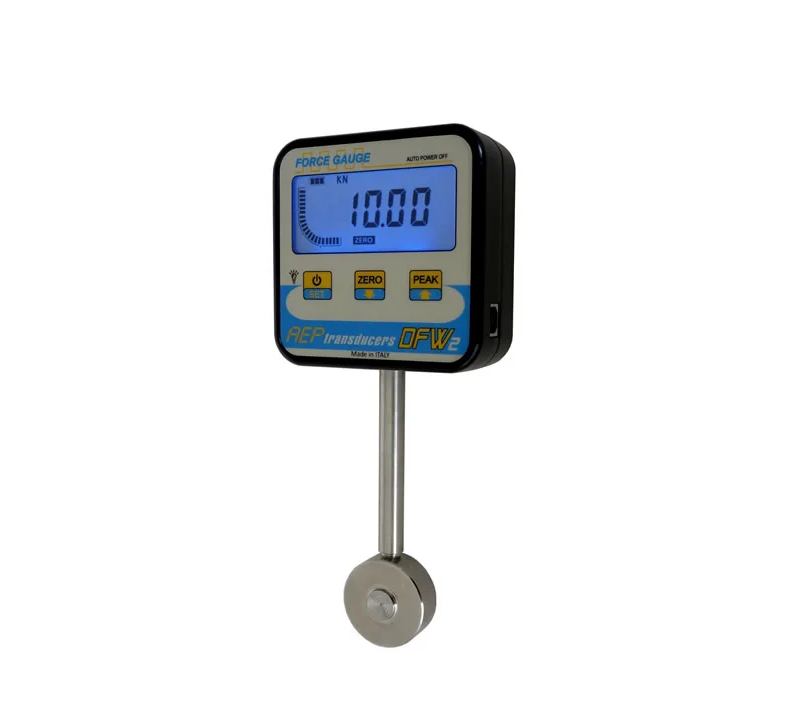

AEP Transducers DFW2 Digital Dynamometer (40kN)

Precision Class : ≤ ± 0.50 %

Nominal Load : 40 kN

Linearity: ≤ ±0.20 %

Hysteresis: ≤ ±0.20 %

Ripetibility: ≤ ±0.05 %

Conversion Per Second: 10 Hz

Reference Temperature: +23 °C

Working Temperature: 0 / +50 °C

Storage Temperature: -10 / +60 °C

Temperature Effect 10 °C::

a) on zero: ≤ ± 0.010 %

b) on sensitivity: ≤ ± 0.025 %

Custom Lcd Display

Character Height 16 Mm

Programmable Backlight From 1 To 60 Seconds

Backlight: Led Blu

Bar Graph Analog Indication

Programmable Resolution: 1, 2, 5, 10

Programmable Digital Filter: from 0 to 10

Zero Function: 100 % F.S.

Peak Function: POSITIVE/NEGATIVE

Auto Power Off Function: From 1 to 30 minutes (no load changes)

Key Block Function (Lock): To protect parameters from changes

Measurement Unit Kn - Dan - N - T - Kg - Lb: kN - daN - N - t - kg - lb

Communication Port: USB 2.0

Max Distance: 5m

Power Supply By Internal Battery: Li-Ion 1100mA/h 3.6V RECHARGEABLE

Battery Recharge: Through USB

Autonomy: 1 month (Backlight disabled)

Time To Recharge: ~ 8 hrs

Mechanical Limit Values::

a) service load: 120%

b) max permissible load: 150%

c) breaking load: >300 %

d) maximum transverse load: 50%

e) max dynamic load: 50%

Displacement At Nominal Load: ~ 0.2 mm

Protection Class (En 60529): IP40

Sensor Material: 17-4 PH STAINLESS STEEL

Enclosure: ALUMINUM and STEEL
