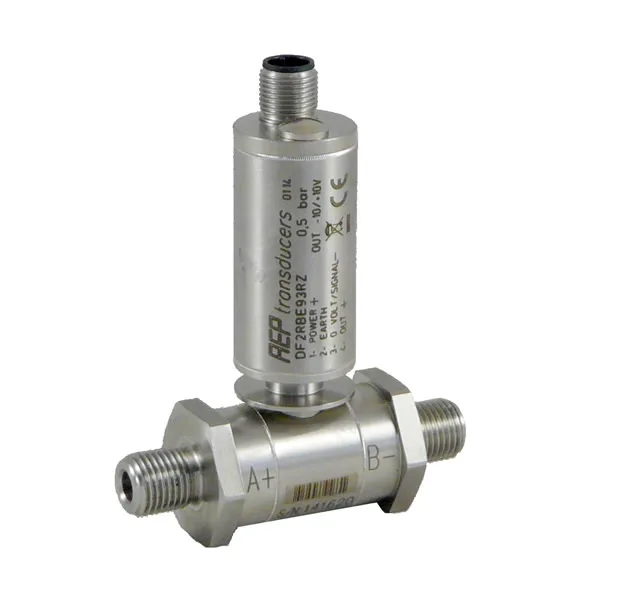

AEP Transducers DF2R Differential transmitter (0.1 ~ 2 bar)

Relative Pressure (R): 0.1 bar 0.5 bar 1 bar 2 bar

Service Pressure (R)X5: 0.5 bar 2.5 bar 5 bar 10 bar

Max. Permissible Pressure : 1bar 4 bar 8 bar 15 bar

Linearity And Hysteresis : ≤ ± 0.10 %

Nominal Sensitivity : 4-20mA (3 wires); ± 5 V, ± 10 V

Calibration Tolerance: ≤ ± 0.05%

Anominal Power Supply: 4-20mA and ±5V: 12-24Vdc; ±10V: 15-24Vdc

Max. Power Supply: 28Vdc

Max. Absorption:

A) 3 Wires: 30mA

Loading Resistance::

A) Tension: min. 3KΩ

B) Current: from 0 to 470Ω

Insulation Resistance : >2 GΩ

Zero Balance : ± 5% ADJ.

Reference Temperature : +23°C

Electronic Case Temperature : -10 / +70°C

Fluid Temperature Measure : -10 / +90°C

Storage Temperature Range -: 20 / +90°C

Process Coupling: 1/4" Gas Maschio

Tightening Wrench : 27 mm

Tightening Torque: 10 Nm

Protection Class (En 60529) : IP65

Sensor Execution Material: INOX 316

Electrical Connection: M12×1 + 4 poles 3m shielded cable
