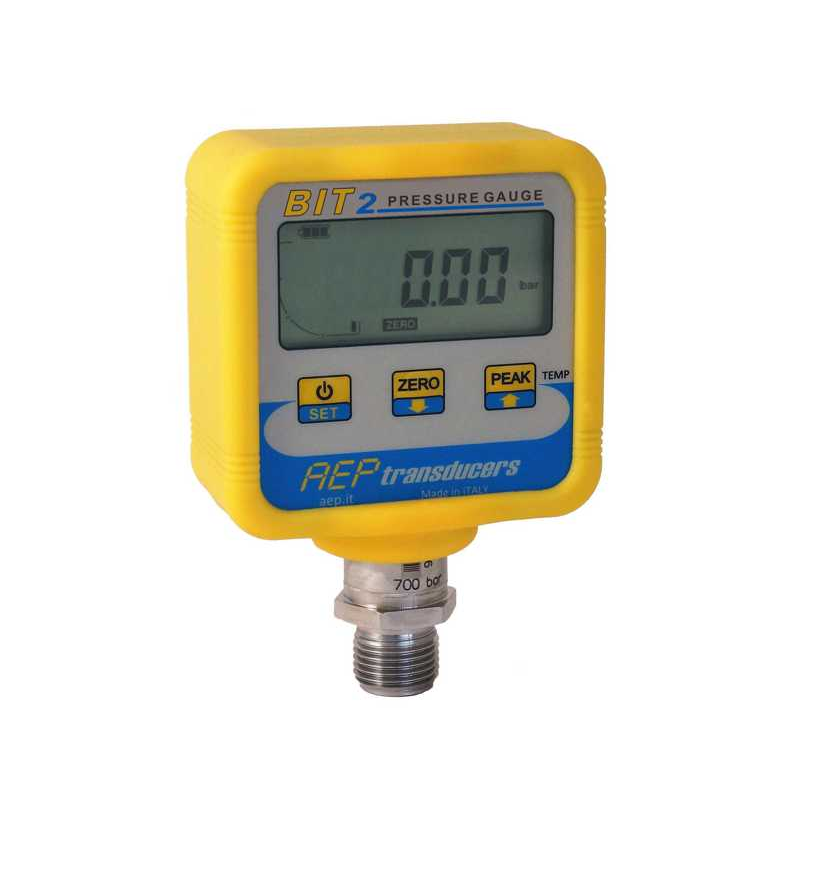

AEP Transducers BIT2 Digital Pressure Gauge (100 bar)

Standard Version Indications

Type: RD

Full scale: 100 bar

Display: 100 bar

Resolution: 0.1 bar

Main Features:

Accuracy (Linearity And Hysteresis) : ≤ ± 0.20 % F.S

Pressure Units : bar – mbar – psi – Mpa – kPa – kg/cm2 – mHg - mmHg – mmH2O – mH2O

Temperature Indication: Unit °C - °F

a) Resolution: 0.1 °C

b) Accuracy: ± 1 °C

Reference Temperature: 0 … +50 °C

Operating Temperature: -10 … +60 °C

Relative Umidity: < 90 % not condensed

Temperature Effect (1 °C):

a) on zero: ≤ ± 0.002%

b) on sensitivity: ≤ ± 0.002%

Internal Resolution: 16 bit

Conversions Per Seconds: 10 (100ms)

Display Lcd Backlight: CUSTOM 7 segment

Display Height: 13mm

Resolution: 1, 2, 5, 10

Function Digital Filter: from 0 to 5

Function Zero: 100 % F.S.

Function Peak: Positive / Negative (VACUUM)

Function Loop: Switch between pressure and temperature

Function Lock (Loc): To protect parameters change

Power Supply: NON rechargeable batteries

Autonomy: ~ 1 YEAR

Battery Recharge: 2 x 1.5V AAA batteries

Mechanical Limit Values:

a) service pressure: 100% F.S.

b) limit pressure: 150% F.S.

c) breaking pressure: >300% F.S.

d) highly dynamic pressure: 75% F.S.

Process Coupling: 1/2" G Male

Seal Recommended: USIT A 63-18

Tightening Wrench: 27 mm

Tightening Torque: 28 Nm

Protection Class (EN 60529): IP65

Material Sensor: 17-4 PH STAINLESS STEEL

Container Material: ALUMINUM
