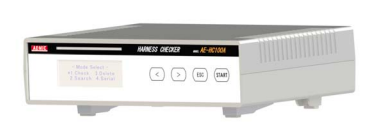

AE-MIC AE-HC100A Harness checker (100pin)

Mode: Check (AUTO)・Search (pin number manual search)

Pin number for inspection: 100pin

Memory: 30 kinds of harness data can be saved (non-volatile memory)

Inspection connector: MIL 50pin×2

Display section: 20digit×4line liquid crystal display with backlight

Quality determination and LED display（green・red）

Operation: Right or left cursor key/ESC key/START key

Buzzer: NG notice

I/O: Tip jack x1 for pin search probe, External control connector x1

Power supply: DC5V (with AC adapter),mobile battery sold on the market can also be

used

Outer dimension: 260(W)×65(H)×180(D) (excluding protruding parts such as rubber legs, etc.)

Weight: About1.1kg

External signal:

External output (quality determination output・measurement completion output)

External input (start・stop)

Option: Custom-made jig and terminal stand is available (Separate consultation

is necessary)
