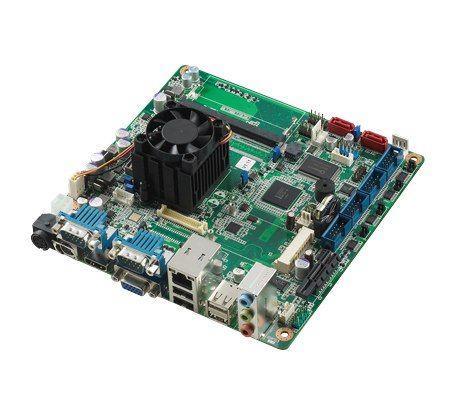

Advantech SIMB-M02-N2600A1E Single Board Computers CIRCUIT MODULE, Intel Atom CedarView m-ITX N2600 VGA/LVDS/HDMI00

Core: Atom N2600

Chipsets: NM10

Frequency: 1.6 GHz

Dimensions: 170 mm x 170 mm

Form Factor: Mini-ITX

Memory Type: DDR3

Cache Memory: 1 MB

Installed RAM: 0 GB

Processor Type: Atom N2600

Number of Cores: 2 Core

Processor Brand: Intel

Processor Series: Intel Atom N2600

Power Consumption: 24.72 W

Description/Function: Intel Atom Cedar View Mini-ITX with VGA/LVDS/HDMI, 6 COM and LAN

Maximum RAM Capacity: 2 GB

Battery Backup Switching: No Backup Battery

Operating Supply Voltage: 12 V

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: 0 C
