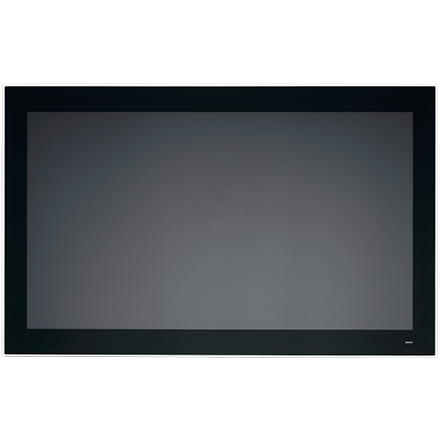

Advantech PPC-324W-PN4 Fanless Widescreen Panel PC with Intel Pentium N4200 Quad-Core Processor (Intel Pentium N4200 quad Core; 23.8 inch TFT LCD)

CPU: Intel Pentium® N4200 Quad-Core

Cores: Quad-Core

Frequency: 2.8 GHz; up to 3.9 GHz with Turbo Boost

L2 Cache: 3 MB

Memory: 1 x SODIMM, DDR3L 1600/1866, max. 8 GB

Storage: 1 x 2.5 inch SATA bay; 1 x mSATA bay

Network (LAN): 2 x 10/100/1000/2500Mbps Ethernet (Intel i225LM)

I/O: 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485; 2 x USB 3.0, 2 x USB 2.0; 1 x Line-out; 1 x HDMI

Speakers: 2 x 1W

Expansion Slot: 1 x Mini PCIe

Watchdog Timer: 255 levels, set up by software

Dimensions: 595.9 x 374.1 x 58.4 mm (23.5 x 14.7 x 2.3 inches)

Weight: 8.6 kg (18.96 lb)

Operating System: Microsoft® Windows 10 IoT LTSC (64-bit), Linux

Input Voltage: 12 ~ 24 VDC

Power Consumption: 70W

Display Type: 23.8 inch TFT LCD (LED backlight)

Resolution: 1920 x 1080

Viewing Angle: 89° (Left), 89° (Right), 89° (Top), 89° (Bottom)

Luminance (cd/m2): 350

Contrast Ratio: 1000

Backlight Lifetime: Minimum 30,000 hours

Touchscreen: 10-point multi-touch projected capacitive

Light Transmission: ≥85%

Controller: USB interface

Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)

Storage Temperature: -30 ~ 60 °C (-22 ~ 140 °F)

Humidity: 95% @ 40 °C (non-condensing)

Shock Resistance: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration Resistance: Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-642-64

EMC Certifications: CE, FCC Class B, BSMI, UKCA

Safety Certifications: CB, UL, CCC, UKCA

Protection Standard: IP66 compliant

Datasheet
