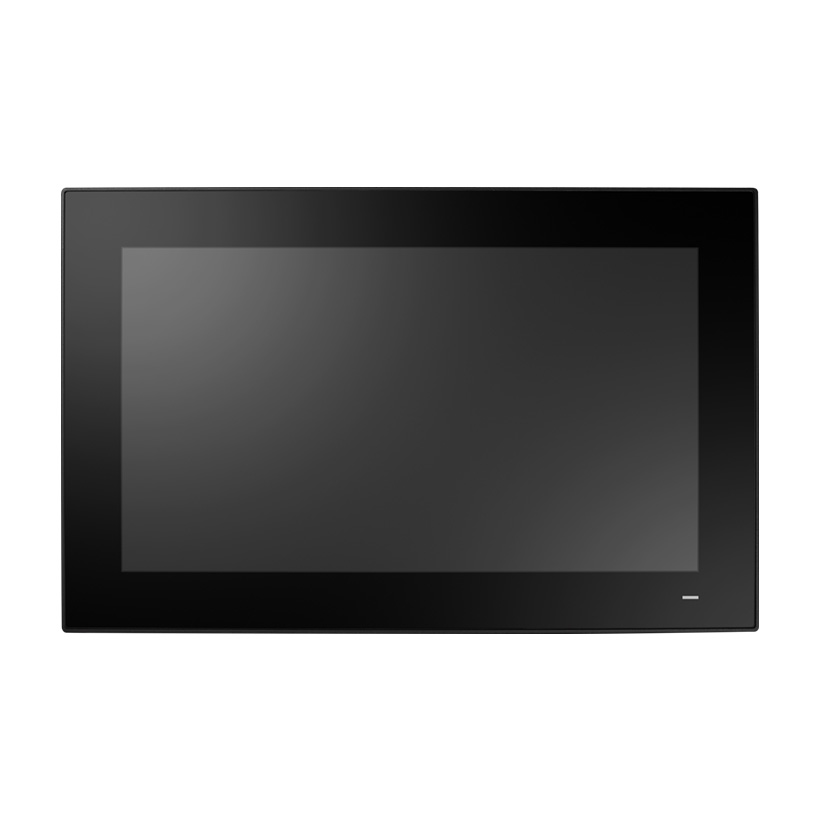

Advantech PPC-315W TGL Fanless Panel PC with Intel Core i7 Processor (Intel 11th Gen Core i7; LCD 15.6 inch FHD)

CPU: i7-1185G7E

Cores: Quad Core

Frequency: 1.8GHz; 4.4GHz with turbo boost

Cache: 12 MB

TDP: 15W

Memory: 2 x SO-DIMM DDR4 3200MHz (max. 32GB x 2)

Storage: 1 x 2.5\

Network (LAN): 1 x Intel I219LM controller; Speed: 10M / 100M / 1000M ; 1 x Intel I226LM controller; Speed: 10M / 100M / 1000M / 2500M

I/O: 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS); 3 x USB 3.2, 1 x USB 2.0, 2 x USB 2.0 (internal), 1 x Type C (USB only); 1 x HDMI1.4; 1 x TPM 2.0; 1 x Line out.

Speaker: 2 x 1W

Expansion: 1 x M.2 2230 E-key for wireless card

Watchdog Timer: 255 timer levels, set up by software

Dimensions: 419.7 x 269.0 x 62.1 mm (16.5 x 10.6 x 2.4 in)

Weight: 4.8 kg (10.67 lb)

OS Support: Microsoft® Windows 10 IOT LTSC(64-bit), Win11, Linux

Input Voltage: 12 ~ 30 VDC

Power Consumption: 70W (Burn-in test 8.1 in Windows 10 64-bit)

Display Type: 15.6 inch FHD LCD (LED backlight)

Resolution: 1920 x 1080

Viewing Angle: 89(left), 89(right), 89(up), 89(down)

Backlight Lifetime: 50,000 hr (min.)

Luminance (cd/m2): 450

Contrast Ratio: 800

Backlight Lifetime: 50,000 hr (min.)

Light Transmission: ≥88%

Controller: USB interface

Operating Temperature: -10 ~ 50 °C (14~122 °F)

Storage Temperature: -20 ~ 60 °C (-4 ~ 140 °F)

Relative Humidity: 95% @ 40 °C (non-condensing)

Shock: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration: Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64

EMC: CE, FCC Class B, BSMI, VCCI, UKCA

Safety: CB, UL, CCC, UKCA

Front Panel Protection: IP66 compliant

Datasheet
