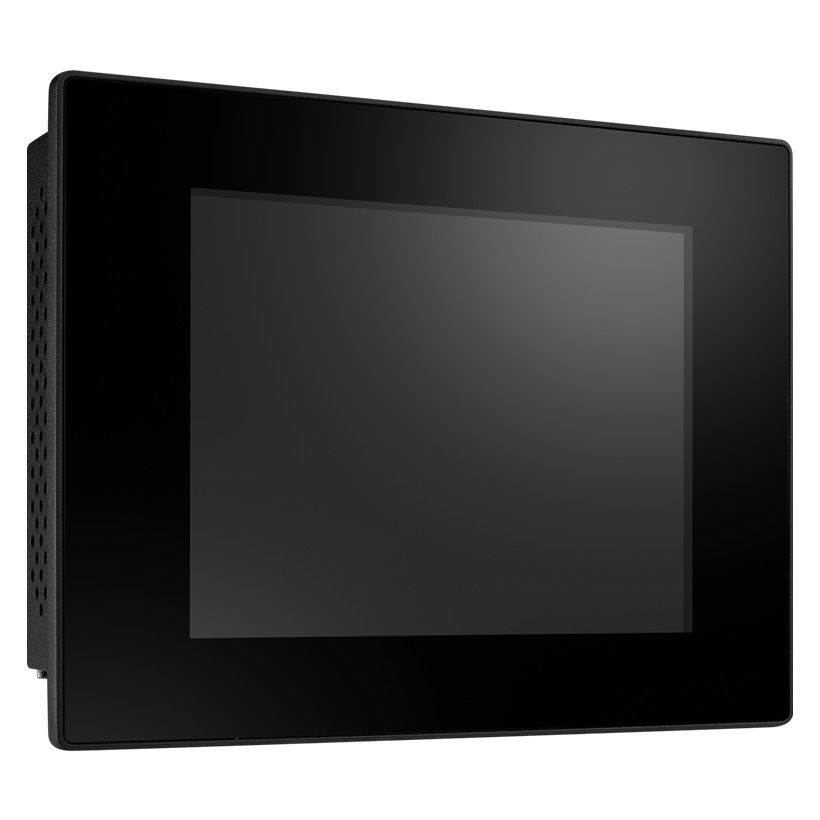

Advantech PPC-306 EHL Fanless Panel PC with Intel Celeron N6210 Processor (Intel Celeron N6210 dual core; 6.5" TFT LCD)

CPU: Intel® Celeron® N6210 dual core

Frequency: 1.2 GHz, Burst to 2.6GHz

L2 Cache: 1.5 MB

Memory: 1 x SO-DIMM DDR4 3200MHz (max. 32GB)

Storage: 1 x M.2 slot: M key for storage (SATA only, 2242)

Network (LAN): 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226-LM)

I/O: 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS); 1 x USB 2.0, 2 x USB 3.0

Expansion: 1 x M.2 slot : E key for wireless module (Type: 2230)

Watchdog Timer: 255 timer levels, set up by software

Dimensions: 197.6 x 150.6 x 41 mm (7.8 x 5.9 x 1.6 in)

Weight: 1.5 kg (3.30 lb)

OS Support: Microsoft® Win 10 IOT LTSC(64-bit), Win11, Linux (Ubuntu), Android 12

Input Voltage: 12 ~ 24 VDC

Power Consumption: 30W (Burn-in test 8.1 in Windows 10, 64-bit)

Display Type: 6.5" TFT LCD (LED backlight)

Resolution: 640 x 480

Viewing Angle: 89(left), 89(right), 89(up), 89(down)

Luminance (cd/m2 ): 800

Contrast Ratio: 1000

Backlight Lifetime: 70,000 hr (typical)

Touch Type: 5-wire resistive touch

Controller: USB interface

Operating Temperature: -10 ~ 50 °C (14 ~ 122 °F)

Storage Temperature: -30 ~ 60 °C (-22 ~ 140 °F)

Relative Humidity: 95% @ 40 °C (non-condensing)

Shock: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration: Operating Random Vibration Test; 2Grms @with M.2, follow IEC 60068-2-64

EMC: CE, FCC Class B, BSMI, UKCA, VCCI

Front Panel Protection: IP65 compliant
