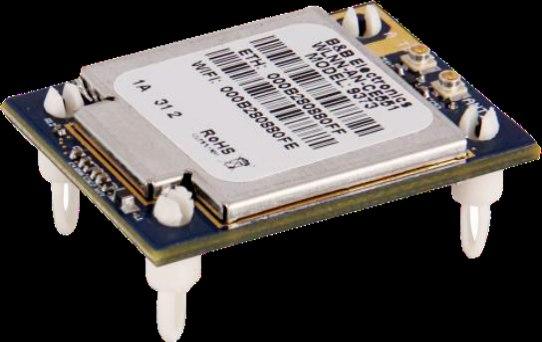

Advantech BB-WLNN-AN-DP551 WiFi Modules 802.11 a/b/g/n UART INTERFACE

Security: EAP, WEP, WPA, WPA2

Data Rate: 11 Mb/s, 54 Mb/s, 65 Mb/s

Frequency: 2.4 GHz, 5 GHz

Dimensions: 40.6 mm x 27.7 mm

Unit Weight: 4.536 g

Output Power: 17 dBm

Interface Type: UART

Protocol Supported: 802.11 a/b/g/n

Modulation Technique: CCK, DSSS, OFDM

Supply Voltage - Max: 3.3 V

Supply Voltage - Min: 3.3 V

Antenna Connector Type: U.FL

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 200 mA

Supply Current Transmitting: 370 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
