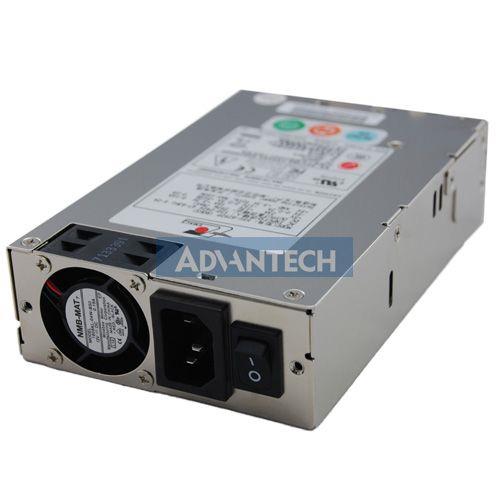

Advantech 96PS-A250W1U Switching Power Supplies 250W ATX PFC SPS for IPC-5120 & IPC-7120 (Old PN:1757000557)

Width: 100 mm (3.937 in)

Height: 40 mm (1.575 in)

Length: 155 mm (6.102 in)

Industry: Industrial

Approvals: EN60950-1, IEC60950-1, UL60950-1

Compliance: EN60950-1, IEC60950-1, UL60950-1

Output Power: 250 W

Input Voltage: 100 VAC to 240 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Number of Outputs: 6 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 14 A

Output Current-Channel 2: 23 A

Output Current-Channel 3: 16 A

Output Current-Channel 4: 500 mA

Output Voltage-Channel 1: 3.3 VDC

Output Voltage-Channel 2: 5 VDC

Output Voltage-Channel 3: 12 VDC

Output Voltage-Channel 4: - 12 VDC
