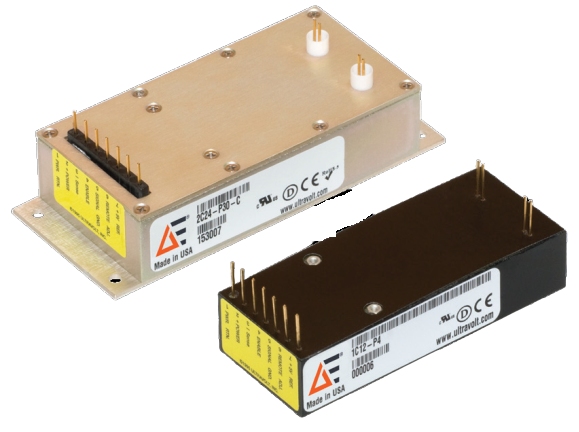

Input:
- Voltage Range: Full Power: +23 ~ 30VDC
- Voltage Range: Derated Power Range: +9 ~ 32VDC
- Current:
Standby / Disable: < 30mA
No Load, Max Eout: < 90mA
Max Load, Max Eout: 20 W: 950mA, 30 W: 1425mA
- AC Ripple Current: Nominal Input, Full Load, < 80mA p-p
Output
- Voltage range: 0 ~ 6000VDC
- Power: Nominal Input, Max Eout: 20, 30W
- Current: Iout Entire Output Voltage Range: 3.3, 5mA
- Current Scale Factor: Full Load, 51, 86mA/V
- Voltage Monitor Scaling: 100:1 ± 2% into 10 MΩ
- Ripple:Full Load, Max Eout, Cload ≥ 0.5 uF: < 1.0V pk ~ pk
- Overshoot: C Load, 0 Eout to Full Eout: < 6.0V pk
- Storage Capacitance: Internal: 0.0064, 0.0064uF
- Line Regulation: Nom. Input, Max Eout, Full Power: < 0.01 %
- Static Load Regulation: No Load to Full Load, Max Eout: < 0.01%
- Stability: 30 Min. warmup, per 8 hr/ Per Day: < 0.01%/< 0.02%
Programming & Controls
- Input Impedance: Nominal Input
+ output models 1.1 MΩ ~ GND, - output models 1.1 MΩ ~ +5 Vref
- Adjust Resistance: Typical Potentiometer Values:
10 ~ 100 K (Pot. across Vref. and signal GND, wiper to adjust)
- Adjust Logic: 0 ~ +5 for +Out, +5 ~ 0 for - Out
+4.64 VDC for +output or +0.36 for -output = nominal Eout
- Output Voltage & Impedance: T=+25°C
+ 5.00 VDC ± 2%, Zout = 464 Ω ± 1%
- Enable/Disable: 0 ~ +0.5 disable, +2.4 ~ 32 enable (default = enable)
Environmental:
- Operating: Full Load, Max Eout, Case Temp: -40 ~ +65°C (Standard)
- Coefficient Over the Specified Temperature: ±50PPM/°C (±25 optional)
- Thermal Shock: Mil-Std 810, Method 503-4, Proc. II: -40 ~ +65°C
- Storage: Non-Operating, Case Temp.: -55 ~ +105°C
- Humidity All Conditions, Standard Package: 0 ~ 95%, non-condensing
- Altitude Standard Package, All Conditions: Sea level through vacuum (vacuum may require -P2 option, contact factory for details)
- Shock: Mil-Std-810, Method 516.5, Proc. IV: 20Gs
- Vibration: Mil-Std-810, Method 514.5, Fig.514.5C-3: 10Gs
- Volume: 70.5 cc (4.30 in3), with -C option: 131.1 cc (8.00 in3)
- Weight: 142 g (5.0 oz), with -C Option: 284 g (10.0 oz)
- Tolerance:
Overall 1.27 mm (±0.050"), pin to pin 0.38 mm (±0.015"), mounting hole location 0.64 (±0.025") (plastic case)
Overall 0.64 mm (±0.025"), pin to pin 0.38 mm (±0.015"), hole to hole location 0.64 mm (±0.025") (metal case)
