- Input Voltage Vin (Pins 2 and 3): 15 VDC ±1.5 V or 24 VDC ±2 V, according to type
- Input Current:
Example for a 15 VDC, output 6000 V, 1 mA model:
inhibition mode: 27 mA at no load and HV = 6000 V 46 mA, at full load < 630 mA
- Polarity: Fixed positive or negative
- Output Voltage: 0 ~ 6000VDC
- Output Power: 1W, 2W, 4W, 6W
- Output Current: 0.25mA, 0.5mA, 1mA, 1.5mA
- Programming: (Pins 4 and 6) Via external voltage source 0 to +5 V ±0.1% at full scale, and input impedance = 94 kΩ
- Max Output Current Iout: Limited to 110% of nominal current
- Load Voltage Regulation: ±0.01% VDC of full output voltage for no load to full load
- Line Voltage Regulation: ±0.01% VDC of full output voltage over specified input voltage range
- Residual Ripple: < 0.02%V pk ~ pk at full load
- Temperature Coefficient: 100PPM/°C
- Output HV Monitoring (Pin 7) {still operating in inhibition mode}:
Analog 0 ~ +5 V buffered output signal, accuracy ±0.2% -
Output impedance = 1 kΩ
Temperature coefficient: 50 ppm/°C for ≤ 4 kV units, 100 ppm/°C for 6 kV units
- Output Current Monitoring (Pin 5) {still operating in inhibition mode}:
Analog 0 ~ +5 V buffered output signal, accuracy ±2% -
Output impedance = 1 kΩ
Temperature coefficient: 100 ppm/°C
- Operating Temperature: -10 ~ +65°C, full load, max Eout, Tcase temp
- Storage Temperature: -10 ~ +70°C
- Safeguards:
Protected against reverse Vin
Soft start feature: the start is guaranteed with no overshoot
Auto inhibition if case > 75°C
HV setting internally limited to 5.3 V
Interface: Analog (positive or negative polarity)

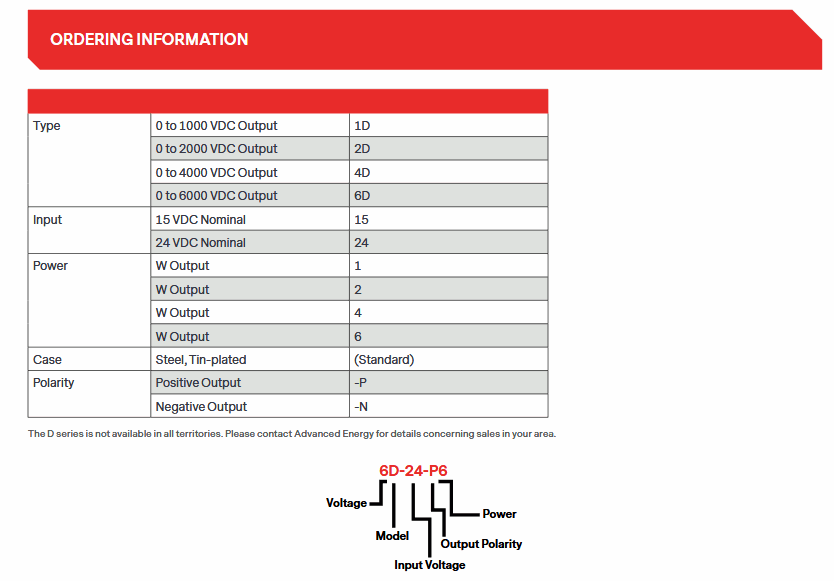

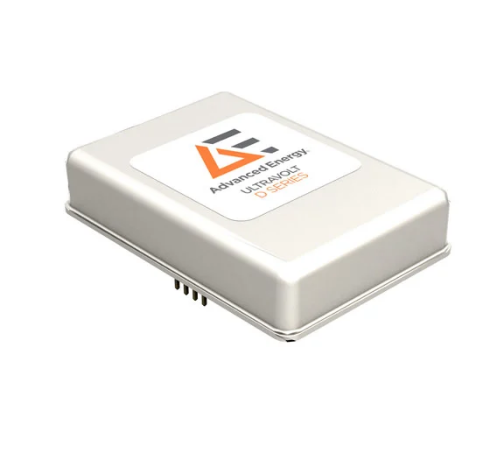

Construction:
Casing: Tin steel plate, thickness 0.5 mm
Volume and Weights:
- 1 ~ 4 kV, 1 ~ 4 W: 36.2cm3, 2.21in3
- 1 ~ 4 kV, 6 W and 1 ~ 6 kV, 1 ~ 6 W: 48.6cm3, 2.97in3
Weight:
- 1 ~ 4 kV, 1 ~ 4 W: 72g, 2.54oz
- 1 ~ 4 kV, 6 W and 1 ~ 6 kV, 1 ~ 6 W: 85g, 3oz
Dimensions
- Overall: ±0.3 mm (0.0118")
- Pin to Pin: ±0.1 mm (0.0039")
- Case to Pin: ±1.5 mm (0.0591")
