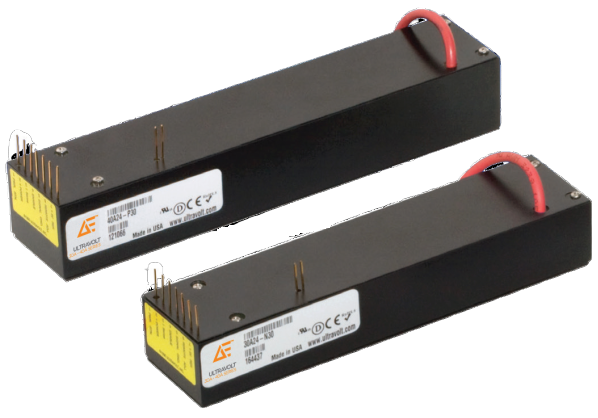

Input (12V; 24V):
- Voltage Range: Full Power: +11 ~ 16VDC; +23 ~ 30VDC
- Voltage Range: Derated Power Range: +9 ~ 32VDC
- Current:
Standby / Disable: < 30mA
No Load, Max Eout: < 0.38A
Max Load, Max Eout: ≈ 800mA; ≈ 1800mA
- AC Ripple Current: Nominal Input, Full Load, < 80mA p-p
Output
- Voltage range: 0 ~ 40000VDC
- Nominal Input Voltage: 12, 24, 24VDC
- Power: Nominal Input, Max Eout: 4, 15, 30W
- Current: Iout Entire Output Voltage Range: 0.10, 0.37, 0.75mA
- Current Scale Factor: Full Load, 0.077, 0.089, 0.092mA/V
- Voltage Monitor Scaling: 1000:1 ± 2% into 10 MΩ
- Ripple: Full Load, Max Eout: 0.030, 0.060, 0.064%V p-p
- Ripple with -F-M Option*: Full Load, Max Eout, 300 pF Bypass Cap: 0.007, 0.025, 0.053%V p-p
- Dynamic Load Regulation: ½ to Full Load, Max Eout per 0.1mA: < 10.0Vpk
- Line Regulation: Nom. Input, Max Eout, Full Power: < 0.01 %
- Static Load Regulation: No Load to Full Load, Max Eout: < 0.01%
- Stability: 30 Min. warmup, per 8 hr/ Per Day: < 0.01%/< 0.02%
Programming & Controls
- Input Impedance: Nominal Input
+ output models 1.1 MΩ ~ GND, - output models 1.1 MΩ ~ +5 Vref
- Adjust Resistance: Typical Potentiometer Values:
10 ~ 100 K (Pot. across Vref. and signal GND, wiper to adjust)
- Adjust Logic: 0 ~ +5 for +Out, +5 ~ 0 for - Out
+4.64 VDC for +output or +0.36 for -output = nominal Eout
- Output Voltage & Impedance: T=+25°C
+ 5.00 VDC ± 2%, Zout = 464 Ω ± 1%
- Enable/Disable: 0 ~ +0.5 disable, +2.4 ~ 32 enable (default = enable)
Environmental:
- Operating: Full Load, Max Eout, Case Temp.
Standard: -40 ~ +65°C
-25PPM Option: +10 ~ +45°C
- Coefficient Over the Specified Temperature:
Standard: ±50PPM/°C
-25PPM Option: +25PPM/°C
- Thermal Shock: Mil-Std 810, Method 503-4, Proc. II: -40 ~ +65°C
- Storage: Non-Operating, Case Temp.: -55 ~ +105°C
- Humidity All Conditions, Standard Package: 0 ~ 95%, non-condensing
- Altitude Standard Package, All Conditions: Sea level through vacuum (Vacuum may require -P2 option. Contact factory for details.)
- Shock: Mil-Std-810, Method 516.5, Proc. IV: 20Gs (standard), 40Gs (-C option)
- Vibration: Mil-Std-810, Method 514.5, Fig.14.5C-3: 10Gs (standard), 20Gs (-C option)
- Volume: 293.66cm3, 17.92in3
- Weight: 595.34g, 21.00oz
