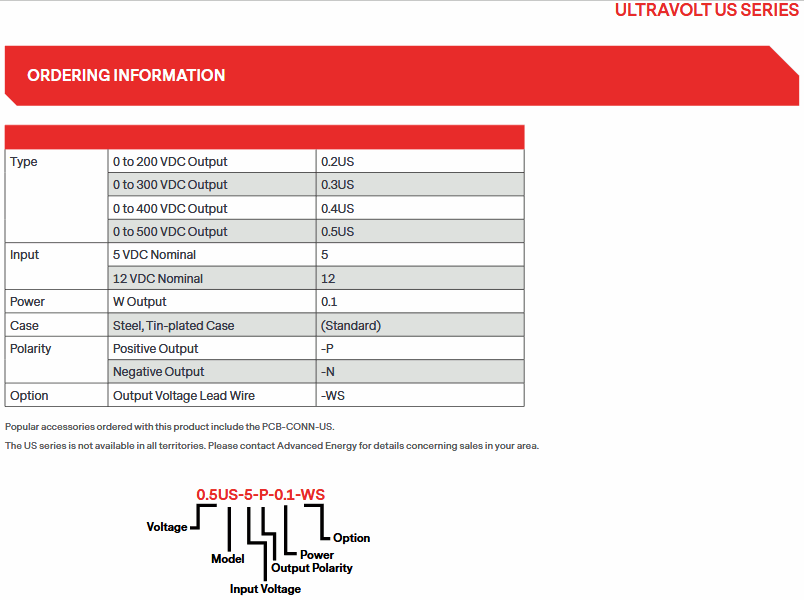

- Input Voltage Vin: 5 VDC ±0.5 or 12 ~ 15VDC ±0.5
- Input Current: Inhibition mode: < 5mA at full output voltage, full load: < 60mA (300Vout)
- Polarity: Fixed positive or negative
- Output Voltage: 0 ~ 300VDC
- Output Current: 330μA
- HV Setting: Via external potentiometer, minimum resistance 10 kΩ or via external voltage source 0/2.5V ±0.5% at full scale, and input impedance > 1 MΩ
- Load Voltage Regulation: ±0.01% of full output voltage for no load to full load
- Line Voltage Regulation: ±0.01% of full output voltage over specified input voltage range
- Residual Ripple: < 0.01% pk to pk at full output voltage and current
- Temperature Coefficient: < 50PPM/°C
- Output HV Monitoring:
0/2.5 V signal -
Accuracy: ±0.2% F.S.
Output impedance: 1 kΩ
- Output Reference Voltage: 2.5 V ±0.5%, TC: 50 ppm/°C, max output current: 1 mA
- HV Power ON/OFF:
ON: 0 V, connected to ground -
OFF: not connected
Open collector compatible
- Operating Temperature: -10 ~ +65°C, full load, max Eout, case temp.
- Storage Temperature: -40 ~ +70°C
- Safeguards:
Output current internally limited
Soft start feature: the start is guaranteed with no overshoot
- Interface: Analog (positive or negative polarity)
- Volume: 5.750cc3, 0351 in3
- Weight: 13g, 0.459 oz
Dimensions:
- Pin Length: > 2 mm (0.078"), spacing 2.54 mm (0.1")
- Optional Lead: Coaxial cable (RG178), diameter 2 mm (0.079"), length 500 mm (19.685")

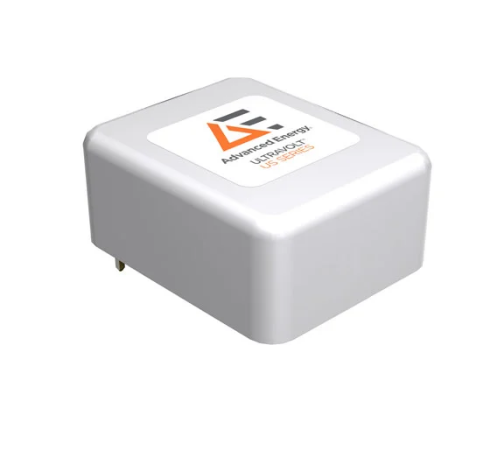

Construction:
- Casing: Steel, tin-plated, thickness 0.5 mm (0.02")
- Insulation: Fully potted in RTV
- Pin Length: > 2 mm (0.078"), spacing 2.54 mm (0.1")
- Optional Lead: Coaxial cable (RG178), diameter 2 mm (0.079"), length 500 mm (19.685")
