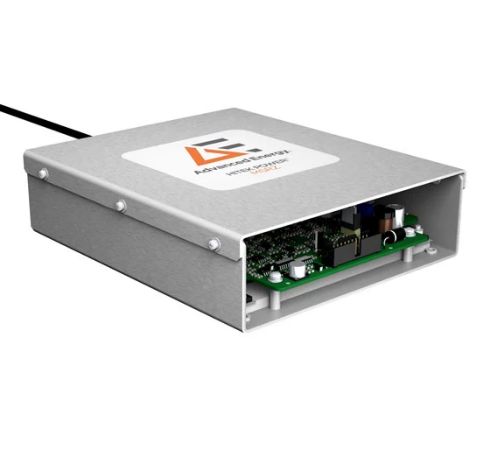

- Output Power: 3.2 W, max
- Output Voltage: ±1 ~ ±20 kV
- Output Current: 0.35 ~ 1 mA
- Input Voltage: +24 VDC ±10%
- Input Current: 1 A, max
- Line Regulation: < 10 ppm for a 1 V input voltage change
- Load Regulation: < 10 ppm for a 10 to 100% load change
- Ripple: < 40 to < 300 mV, depending on model
- Voltage Control: 0 ~ 10 V = 0 ~ 100%, accuracy ±2%
- Current Control: Fixed at approximately 110 ~ 130% of max
- Voltage Monitor: ±10 V = +100 ~ -100%, accuracy ±2%
- Current Monitor: ±10 V = +100 ~ -100%, accuracy ±2%
- Polarity Control:
Low < 0.8 V = Negative
High > 3.5 V or open = Positive
- Inhibit:
Low < 0.8 V = Enabled
High > 3.5 V or open = Inhibited
- Stability: < 0.01% per hour, 0.05% in eight hours (after one hour warmup)
- Temperature Coefficient: 125 ppm/°C at max output voltage (tested with external voltage control, 10 ppm available on request)
- Protection: Units are fully protected against over-voltage, short circuit, and intermittent arcs to ground.
- Cooling: Convection cooled
- Operational Temperature: 10 ~ 50°C (50 ~ 122°F)
- Storage/Transport Temperature: -20 ~ 85°C (-4 ~ 185°F)
- Operational Altitude: Sea level to 2000 m (6500')
- Storage/Transport Altitude: Sea level to 18,000 m (59,055')
- Reliability: MTBF > 50,000 hours
- Humidity: 80% max relative humidity up to 31°C (88°F), reducing linearly to 50% at 40°C (104°F); non-condensing (ref. EN61010-1)
- Options: A control option can be supplied with a bipolar input voltage program of ±10 V without the polarity control signal. Please consult our Sales Team for part numbering for this option.
- Interface: 20-Way IDC Connector
- Dimensions: 159 mm x 182 mm x 47 mm (6.25″ x 7.16″ x 1.85″)
- Weight: 1.5 kg (3.3 lb)
- Casing: Aluminum, clear non-chrome passivate finish
- Output Cable: Unterminated URM76; 1 m (39.37″) of screened output cable
- Connectors: Various options are available upon request.
