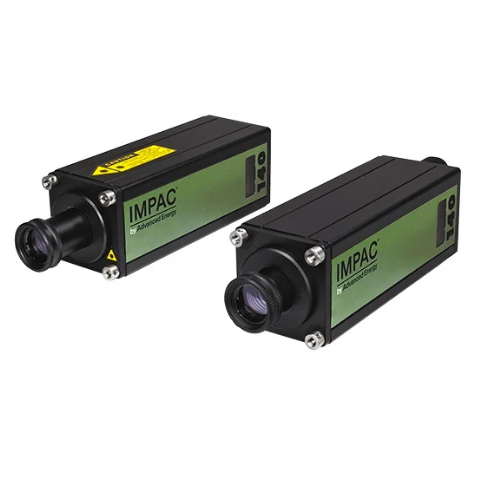

Advanced Energy IPE 140/39 Metal Applications Pyrometer (20 ~ 1800°C)

- Temperature Range:
20 ~ 700°C (68 ~ 1292°F) (MB 7)
75 ~ 1200°C (167 ~ 2192°F) (MB 12)
300 ~ 1450°C (572 ~ 2642°F) (MB 14.5S)
200 ~ 1800°C (392 ~ 3272°F)(MB 18)
- Optics:
3 focusable optics
a = 105 ~ 150 mm
a = 200 ~ 440 mm
a = 345 ~ 4300 mm
- Spectral Ranges: 3.9 μm
- Resolution:
Interface and display: 0.1°C
Analog output: < 0.03% of temperature range
- Measurement Uncertainty (ε = 1, t90 = 1 s, Tamb = 23°C):
MB 3.5: < 250°C: 1°C; > 250°C: 0.4% of reading in °C +1°C
All others: < 400°C: 2.5°C; > 400°C: 0.4% of reading in °C +1°C
- Repeatability (ε = 1, t90 = 1 s, Tamb = 23°C):
MB 3.5: 0.1% of reading in °C + 0.2°C
All others: 0.1% of reading in °C + 1°C
- Emissivity ε: 10 to 100% adjustable in steps of 0.1%
Electrical:
- Power Supply: 24 V AC/DC (14 ~ 30 V AC/DC) (AC: 48 ~ 62 Hz)
- Power Consumption: Max 6VA
- Load: 0 ~ 500 Ω
Environmental
- Protection system: IP65 (according to DIN 40 050)
- Ambient Temperature: 0 ~ 53°C (32 ~ 127.4°F)
- Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
- Weight: ≈550 g (≈1.21 lbs)
- Dimensions (L x W x D): 195 mm x 56 mm x 62.5 mm (7.68" x 2.20" x 2.46")
- CE Label: According to EU directives about electromagnetical immunity
Communication
- Analog Output:
0 ~ 20 mA or 4 ~ 20 mA (linear), switchable; load max 500 Ohm
- Test Current Output: Fixed 10 mA (for 0 ~ 20 mA analog output) or fixed 12 mA (for 4 ~ 20 mA analog output)
Interface:
- Sighting: Laser targeting light (max. power level < 1 mW, λ = 630-680 nm, CDRH class II) or through lens view finder
- Scope of Delivery: Pyrometer with focusable optics, works certificate, InfraWin operating and analyzing software.
