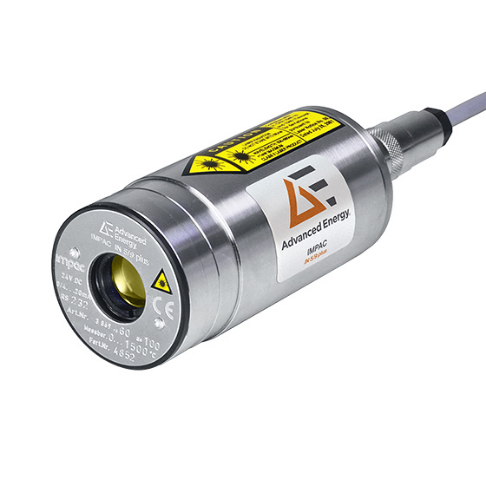

Advanced Energy IN 5/9 plus Non-Metal Applications Pyrometer (0 ~ 1300°C, 620mm)

- Temperature Ranges: 0 ~ 1300°C (32 ~ 2732°F)
- IR Detector: Thermopile
- Data Handling: Digital
- Spectral Range: 8 ~ 9.7 μm
- Resolution:
0.1°C on interface
< 0.1% of temperature range at the analog output
- Emissivity ε: 0.2 ~ 1.2 switchable in the instrument (offline mode: adjustable from 0.2 ~ 1.0) or with the software InfraWin (online mode) in steps of 0.01
- Measurement Uncertainty Tamb (ε =1, t90 = 1 s, Tamb = const.):
0.6% of reading in °C or 3°C (Tamb = 15 ~ 30°C)
1% of reading in °C or 5°C (Tamb = 0 ~ 15°C or 30 ~ 63°C)
- Repeatability (ε =1, t90 = 1 s): 0.3% of reading in °C or 0.6°C
- Noise Equivalent Temperature Difference (NETD) (σ=1, ε =1, Tamb = 23°C ):
350°C: @ t90 = 180 ms: 0.5°C; @ t90 = 1 s: 0.2°C
950°C: @ t90 = 180 ms: 0.4°C; @ t90 = 1 s: 0.1°C
- Optics: Zinc-Sulfide (ZnS)
a = 620mm
- Sighting: Laser targeting light 650 nm, Laser power level < 1 mW, Laser class 2 per IEC60825-1-3-4
Electrical:
- Power Supply: 24 VDC (18 ~ 30 V); nominal, ripple must be less than 0.5 V
- Power Consumption: Max 70 mA
- Load: Max 500 Ω @ 24 V (max. 200 Ω @ 18 V)
Environmental
- Protection Class: IP 65 (DIN 40050)
- Ambient Temperature: 0 ~ 63°C (32 ~ 145.4°F)
- Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
- Relative Humidity: Non-condensating conditions
- Weight: Approx 410 g (~14.47 oz)
- Housing: Stainless steel
- CE Label: According to EU directives about electromagnetical immunity
Interface and Communication:
- Analog Output: 0 ~ 20 mA or 4 ~ 20 mA (linear), adjustable
- Interface: RS232 (RS485 on request)
- Exposure Time t90: 0.18 s
- Connection: 12-pin connector
- Scope of Delivery: Instrument with selected optic, works certificate, PC measurement and evaluation software InfraWin
