- Temperature Range: 600 ~ 1800°C (1112 ~ 3272°F)
- Optics: a (Measuring distance) = 0, 300, 600, 1200, 2000, 3000, 5000mm
- Spectral Range: 0.8 ~ 1.1 μm
- Data Handling: Digital
- Resolution:1°C
- Emissivity ε: 0.05 ~ 1.00; adjustable
- Response Time t90: 250 ms, adjustable up to 10 s; ex works adjusted to 1 s
- Measurement Uncertainty:
< 1500°C: ±0.3% of measuring value in °C + 1°C
> 1500°C: ±0.5% of measuring value in °C + 1°C
- Repeatability: 0.1% of measured value in °C + 1°C
Electrical
- Power Supply: 24 VDC ±25%, ripple max 50 mV
- Power Consumption: 0.6 W
- Load: 700 Ohm at 24 V power supply
Environmental
- Protection Class: IP65 with mounted cable
- Ambient Temperature: 0 ~ 70°C (32 ~ 158°F)
- Storage Temperature: -20 ~ 70°C (-7 ~ 158°F)
- Weight: 600 g (≈21.2 oz)

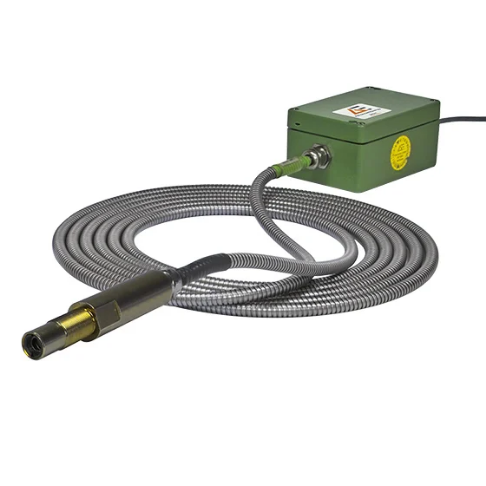

- Converter Housing (L x W x H): Alu die-casting, 125 mm x 80 mm x 57 mm (4.92" x 3.15" x 2.24") (without plug)
- Optical Head: Stainless steel, 112 mm x 22 mm (4.41" x 0.87")
- Fiber Optic: Multi fiber with flexible stainless steel protection
- CE Label: According to EU directives about electromagnetic immunity
- Interface: Service interface RS232
Communication
- Analog Output: Adjustable 0 ~ 20 mA or 4 ~ 20 mA, linear (via digital interface)
- Digital Interface:
RS485 addressable (half-duplex)
Baud rate: 1200 Bd to 115.2 kBd (on request RS232, not addressable)
- Scope of Delivery: Pyrometer with PC software InfraWin for adjustment and evaluation, Works Certificate, and Manual
