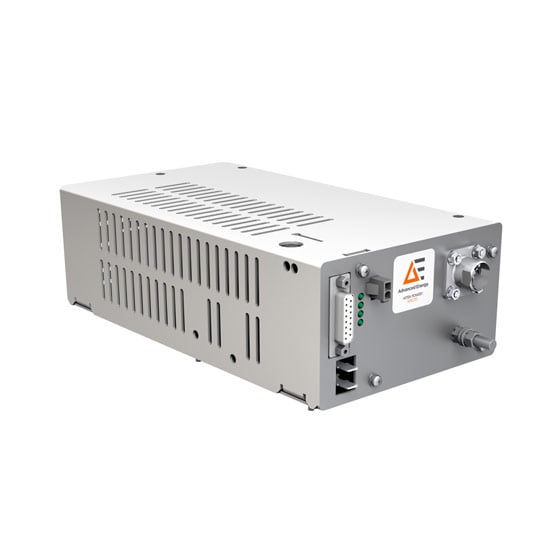

ELECTRICAL SPECIFICATIONS
Output Voltage : 25 kV
Output Current : 2 mA
Output Power: 50 W
Input Voltage: 24 VDC ±10%, 5.5 A max (efficiency ≈ 75%)
Ripple: 0.05% +10 V peak to peak max
Filament: 5.5 VDC, 3.5 A, controlled by internal beam control loop
Filament Disabled
+ Filament disabled: apply V > 2.8 V on pin 12
+ Filament enabled: apply V < 0.8 V on pin 12
+ Input Impedance: 10 kΩ max input voltage 24 V
MECHANICAL SPECIFICATIONS
Dimensions See drawings (in Datasheet)
Weight : Analog models: 3 kg (6.6 lb); Models with RS-232: 3.2 kg (7 lb)
Casing: Aluminum, clear, non-chrome passivate finish
Input DC Power Connector: Twin 63.5 mm (¼") push on spade terminals
HV Output Connector: HiTek Power-designed detachable connector
Filament Output Connector: Molex 2 W minifit 39-29-1028
