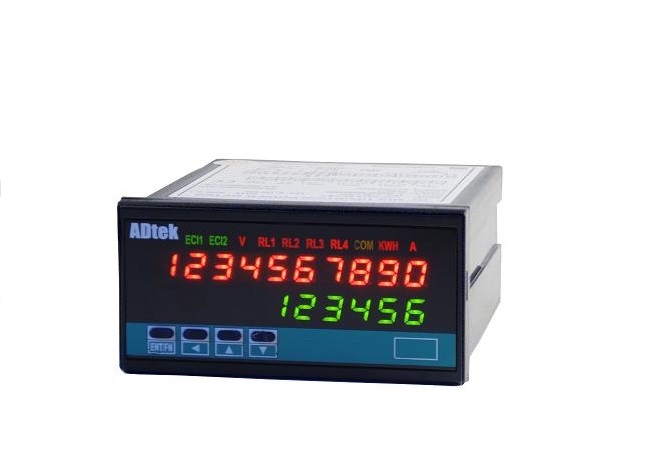

ADITEK VAW DC Multi-funtion Power Meter (96x48mm)

- Measuring: DC Voltage, Current, Power, Import Energy and Export Energy
- DC V: 0~600V
- DC A: 0~10A
- Accuracy
V: 0.04% ± 1digit
A: 0.04% ± 1digit
- Resolution:
V: 0.001mV ~ 0.01V
A: 0.01uA ~ 0.01A
- Sampling Rate: 15cycles/sec
- Reponse Time: ≤100msec
- Power Suply: AC115/230V±15%,50/60Hz
- Size: 96mm(W) x 48mm(H) x 120mm(D)
- Weght: 550 g

Select the bottom ordering

 Datasheet

Option
- Relay Output (0, 2, 3, 4)
- Analog Output (0~5V, 0~10V, 0~10mA, 0(4)~20mA)
- RS 485 Modbus Communication
- Aux Power ADL 20~56V DC/ ADH 85~264V AC/DC
