Adtek TS 2 WIRE TEMP. Transmitter WITH SENSOR (2 wire, Type sensor K,j,E,T and Pt100) (2 dây, Cảm biến loại K, J, E, T và Pt100)

Input Range:
+ Type K, 0 ~ 1200°C
+ Type J, 0 ~ 1000°C
+ Type E, 0 ~ 800°C
+ Type T, -50 ~ 400°C
+ Pt100Ω, -100 ~ 800°C
Output Range: 4 ~ 20 mA
Accuracy: RTD ( Pt100 ): ±0.15%/ T/C ( K, J, E, T ): ±0.3%
Response time: ≤ 300 msec
Power Supply: DC 16 ~ 36V
Operating temperature/humidity: 0~60°C/ 20~95 %RH
Weight: 50g

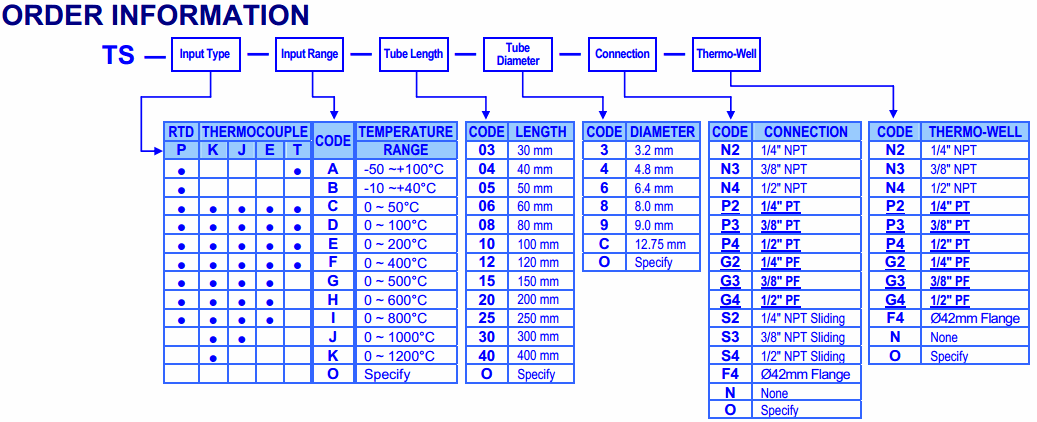

Select the bottom ordering

Datasheet
