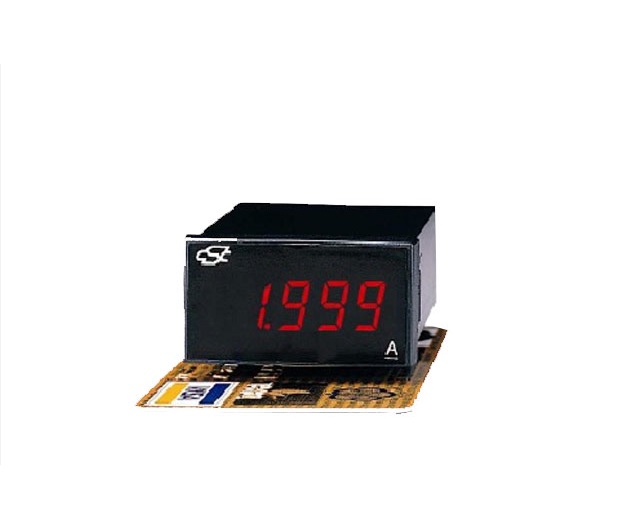

Adtek CSMS-321T Digital panel meter (2A, 200V, 1200 ℃)

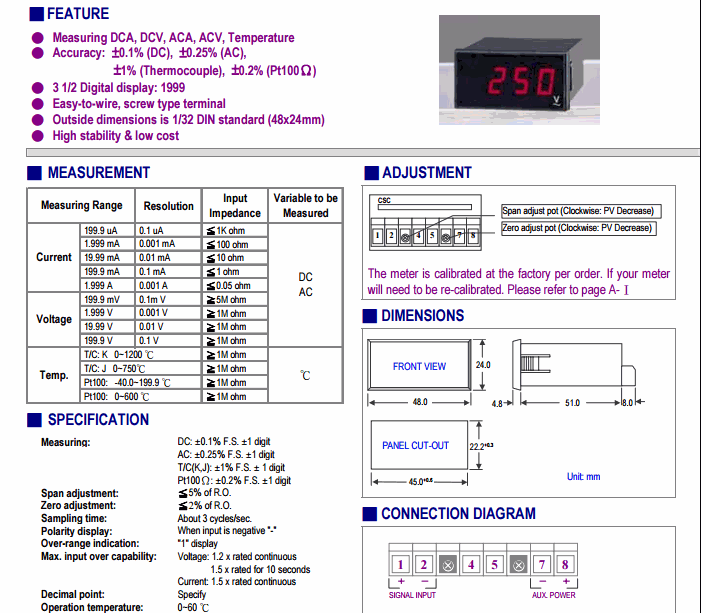

■ MEASUREMENT
Resolution Input
Impedance
Variable to be
Measured
199.9 uA 0.1 uA ≦1K ohm
1.999 mA 0.001 mA ≦100 ohm
19.99 mA 0.01 mA ≦10 ohm
199.9 mA 0.1 mA ≦1 ohm
1.999 A 0.001 A ≦0.05 ohm
199.9 mV 0.1m V ≧5M ohm
1.999 V 0.001 V ≧1M ohm
19.99 V 0.01 V ≧1M ohm
199.9 V 0.1 V ≧1M ohm
T/C: K 0~1200 ℃ ≧1M ohm
T/C: J 0~750℃ ≧1M ohm
Pt100: -40.0~199.9 ℃ ≧1M ohm
Pt100: 0~600 ℃ ≧1M ohm
Measuring: DC: ±0.1% F.S. ±1 digit
AC: ±0.25% F.S. ±1 digit
T/C(K,J): ±1% F.S. ± 1 digit
Pt100Ω: ±0.2% F.S. ±1 digit
Span adjustment: ≦5% of R.O.
Zero adjustment: ≦2% of R.O.
Sampling time: About 3 cycles/sec.
Polarity display: When input is negative "-"
Over-range indication: "1" display
Max. input over capability: Voltage: 1.2 x rated continuous
1.5 x rated for 10 seconds
Current: 1.5 x rated continuous
Decimal point: Specify
Operation temperature: 0~60 ℃
Operation relative humidity: 20~95 %R.H.
Temperature coefficient: ≦100 PPM/℃ ( 0~50℃ )
≦50 PPM/℃ ( 23±3℃ )
Storage temperature: -10~70℃
Power Supply: 5Vdc ±5% ( Aux. Power(-) & Signal input(-)
are common inside )
▄ Option: DC 5V, 12V, 24V ±5% ( Isolated )
Power consumption: 700mW
Weight: About 55g
