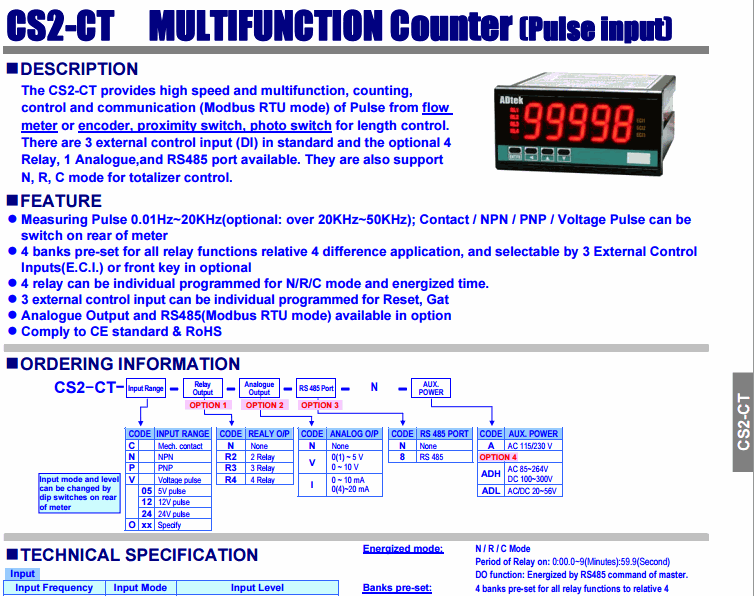

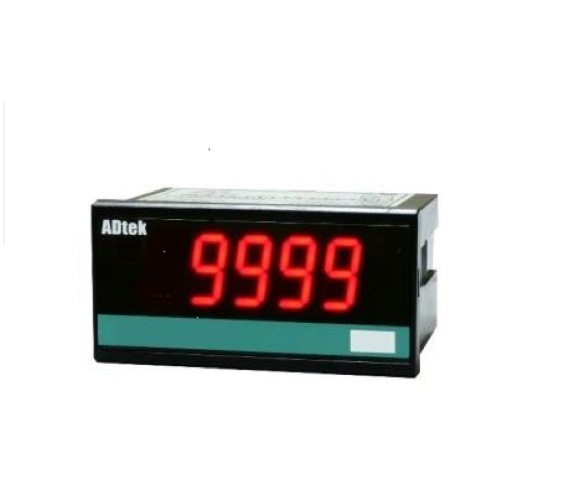

Adtek CS2-CT MULTIFUNCTION Counter (Pulse input) (0.01Hz~20KHz)

DESCRIPTION
The CS2-CT provides high speed and multifunction, counting,
control and communication (Modbus RTU mode) of Pulse from flow
meter or encoder, proximity switch, photo switch for length control.
There are 3 external control input (DI) in standard and the optional 4
Relay, 1 Analogue,and RS485 port available. They are also support
N, R, C mode for totalizer control.
FEATURE
● Measuring Pulse 0.01Hz~20KHz(optional: over 20KHz~50KHz); Contact / NPN / PNP / Voltage Pulse can be
switch on rear of meter
● 4 banks pre-set for all relay functions relative 4 difference application, and selectable by 3 External Control
Inputs(E.C.I.) or front key in optional
● 4 relay can be individual programmed for N/R/C mode and energized time.
● 3 external control input can be individual programmed for Reset, Gat
● Analogue Output and RS485(Modbus RTU mode) available in option
● Comply to CE standard & RoHS
