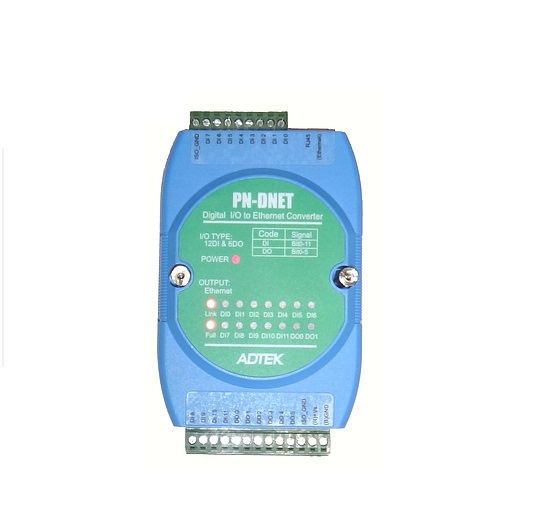

Adtek PN-DNet DI/DO TO ETHERNET Converter (12DI/6DO)

CPU: ASIX MCU
Network interface: 10M/100M BASE-T, RJ-45 connector
Protocol: TCP/ IP，UDP，DHCP Client， HTTP， Modbus/TCP
Automatic reset: Built-in Watchdog Timer automatic reset
Digital input 12-channel optically isolated input
Range:
- Logic level 0：Ground (5~30VDC)
- Logic level 1：Open (0~2VDC)
Digital output: 6-channel output
Security: Can set the system password and login password
Power Supply: DC 10~30V
Weight: 150g
APPLICATIONS
- Security devices
- Warehouse terminals
- Access control terminals
- Time recorders- Shop floor automation terminal
