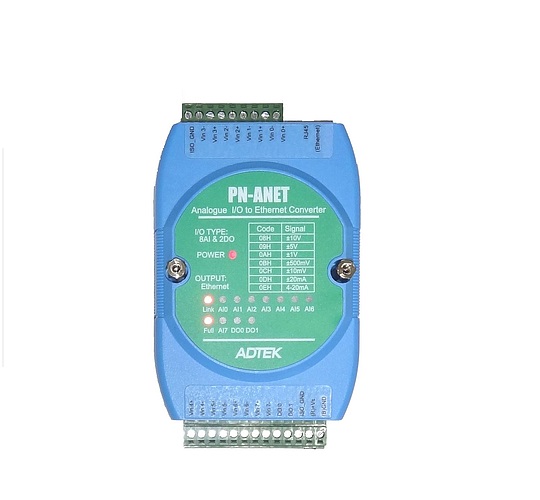

Adtek PN-ANET AI TO ETHERNET Converter (±150mV, ±500mV, 0~5V, ±10V/ or 0~20mA, 4~20mA)

CPU: ASIX MCU
Network interface: 10M/100M BASE-T, RJ-45 connector
Protocol: TCP/ IP，UDP，DHCP Client， HTTP， Modbus/TCP
Analog Input: 8 AI
+ Input range: Voltage and Current changeable by dip-switch
- Voltage: ±150mV、±500mV、0~5V、±10V
- Current: 0~20mA / 4~20mA
Imput impedance: 0-10V:20MΩ/4~20mA:120Ω
Digital output: 2 channel, Open collector voltage:≤50V, Maximum load current:500mA
Resolution: 16 bits ADC
Accuracy: ± 0.1% or even lower
Sampling time: 10 samples/ sec
Security: password
Power Supply: DC10~30V
Weight: 150g
APPLICATIONS
- Data collection
- Remote Sensors and Various Meters
- Access control terminals
- Environmental monitors
- Data loggers
