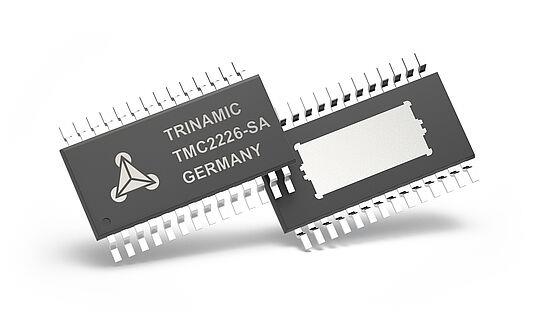

ADI Trinamic TMC2226-SA 2 Phase Silent stepper motor driver 5 to 36V, up to 1.4A with S/D and UART Interface, 256 Steps, SpreadCycle and Stealthchop2
Manufacturer: ADI Trinamic Model: TMC2226-SA - Contact
Mounting Style: SMD/SMT
Output Current: 2.8 A
Output Voltage: 5 V
Development Kit: TMC2226-EVAL
Number of Outputs: 2 Output
Moisture Sensitive: Yes
Operating Frequency: 12 MHz
Supply Voltage - Max: 29 V
Supply Voltage - Min: 4.75 V
Pd - Power Dissipation: 500 mW
Operating Supply Current: 7.5 mA
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
