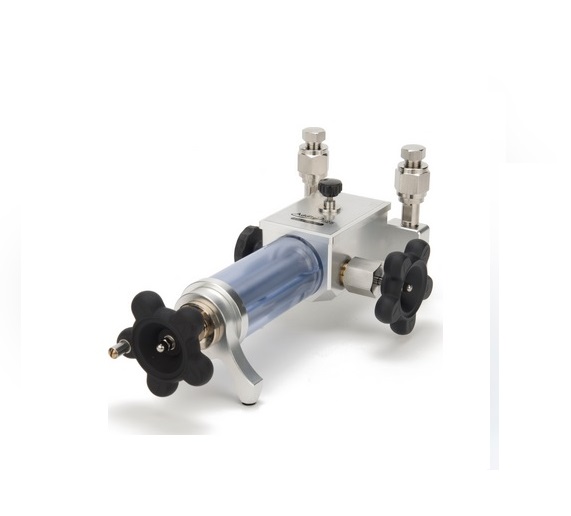

Additel 925 Handheld Hydraulic Pressure Test Pump

Media: Oil or deionized water

Adjustment Resolution: 10 Pa (0.1 mbar/0.0015 psi)

Reservoir capacity: 200 ml

Generated Pressure Range: 85% vacuum to 6,000 psi (400 bar) positive pressure.

Material:

Ram/adapters: SS

Body: SS, aluminum

Seals: Buna-N, PTFE, Copper Alloy

Connection

Hand-tight connectors for both test gauge and reference gauge.

1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female

Dimensions:

Height: 4.72" (120 mm)

Base: 9.84" (250 mm) x 5.51" (140 mm)

Weight: 3.7 lb (1.7 kg).

Piston volume

Low pressure piston: 18 ml

High pressure piston: 0.9 ml

Accessories included

Mineral oil,1 bottle (250 ml)*

O-ring: 20 pcs

Manual: 1 pc

Carrying case (925-X-SET models only)
