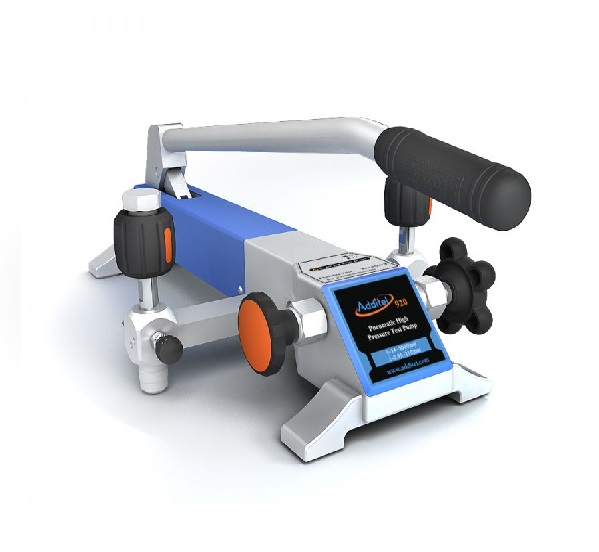

Additel 920 High Pressure Test Pump

Media: Air.

Generated Pressure Range: 95% vacuum to 3,000 psi (200 bar) positive pressure.

Adjustment Resolution: 10 Pa (0.1 mbar/0.0015 psi)

Material:

Ram/adapters: SS

Body: SS, aluminum

Seals: Buna-N, PTFE, Copper Alloy

Piston volume: 60 ml

Connection

Hand-tight connectors for both test gauge and reference

gauge.

1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female

Dimensions:

Height: 7.00" (178 mm);

Base: 21.26" (540 mm) x 10.63" (270 mm).

Weight: 14.3 lb (6.5 kg).

Accessories included

O-ring: 20 pcs

Manual: 1 pc

Carrying case (920-X-SET models only)
