Measurement Accuracy
Range /Resolution /Accuracy
Voltage DC:
±75.0000 mV 0.1μV 0.01%RD + 3.75 μV
±30.0000 V 0.1 mV 0.01%RD + 1.5 mV
Current DC: ± 30.0000 mA 0.1μA 0.01%RD + 1.5 μA
Resistance
Two-wire :0 to 400.000 Ω 1mΩ 0.02%RD + 0.02 Ω
Three-wire: 0 to 400.000 Ω 1mΩ 0.02%RD + 0.02 Ω
Four-wire: 0 to 400.000 Ω 1mΩ 0.01%RD + 0.02 Ω
Two-wire: 0 to 4000.00 Ω 10mΩ 0.02%RD + 0.2 Ω
Three-wire: 0 to 4000.00 Ω 10mΩ 0.02%RD + 0.2 Ω
Four-wire: 0 to 4000.00 Ω 10mΩ 0.01%RD + 0.2 Ω
Frequency :1 to 50000.0 Hz 0.1Hz 0.005%RD + 1 Hz
Pulse: 0 to 999999 1 N/A
Additel 221A The Additel 221A is very unique to the multifunction temperature calibrator market. Not only does it provide you with the ability to source, simulate and measure temperature and electrical functions but it also incorporates full documenting capability and many other solutions other products do not provide. As a standalone device, you can create tasks, run tests and store the results. With the use of Additel/Land Software or Additel/Cal software, all saved tasks and data can be downloaded and managed. With it's unique internal could junction compensation sensor, cold junction compensation is very simple and easy.

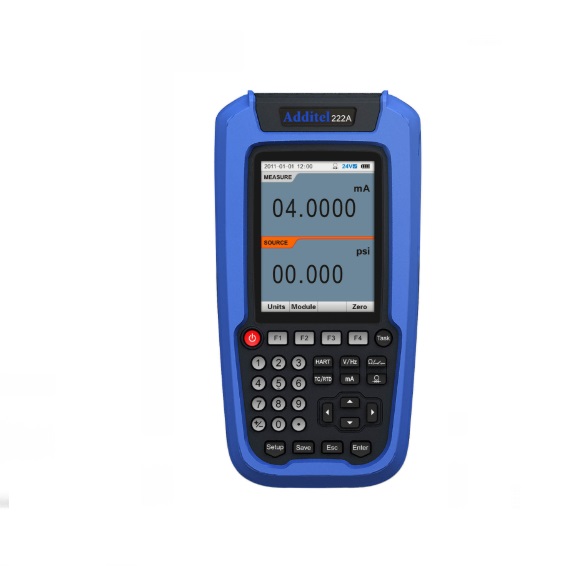

Additel 222A The Additel 222A Multifunction Process Calibrator takes all the functionality of the 221A and adds the ability to measure and source pressure using the ADT160A Intelligent Pressure Modules. With calibration characteristics programmed directly into the ADT160A pressure modules you can simply connect it to the 222A and it will automatically recognize and display the module as the source or measure pressure. For ultimate convenience, one 222A allows for modules to be "hot swapped" with a simple connection at the top of the module.
Additel 223A The 223A has all the capability of the 221A and 222A and HART Communication in one small, easy-to-use package. The 223A has a full HART library that allows for the reading of HART-smart devices and also the capability to write to devices. Combined with full task automation and documentation, the 223A is an ideal tool to accomplish many of your important tasks.
