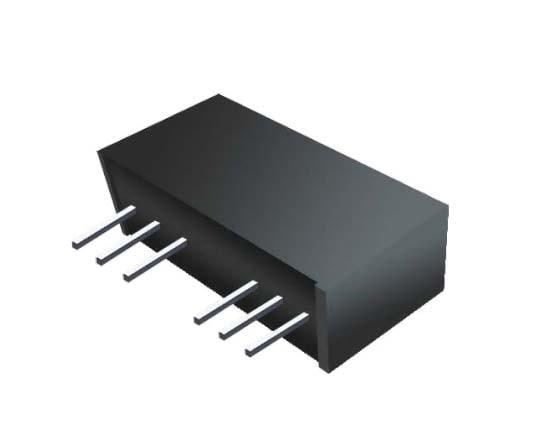

Adam Tech RD7-05D053R Isolated DC-DC CONVERTER, ISOLATED MODULE, DUAL OUTPUT, 4.5V-9VDC INPUT, +/-4.85-+/-5.15VDCa.VIN=4.5-9VDC, 3W
Manufacturer: Adam Tech Model: RD7-05D053R - Contact
Width: 9.2 mm (0.362 in)
Height: 11.1 mm (0.437 in)
Length: 21.8 mm (0.858 in)
Industry: Industrial
Dimensions: 21.8 mm x 9.2 mm x 11.1 mm
Output Power: 3 W
Input Voltage: 4.5 VDC to 9 VDC
Mounting Style: Through Hole
Isolation Voltage: 1.5 kV
Number of Outputs: 2 Output
Input Voltage - Max: 9 V
Input Voltage - Min: 4.5 V
Input Voltage, Nominal: 5 V
Output Current-Channel 1: 300 mA
Output Current-Channel 2: 300 mA
Output Voltage-Channel 1: 5 V
Output Voltage-Channel 2: - 5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
