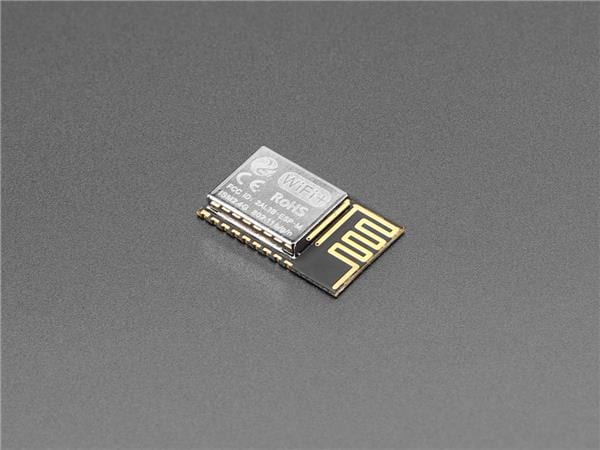

Adafruit 4065 WiFi Modules ESP8285 SMT Module - ESP8266 with 1MB FLASH - ESP-M2
Manufacturer: Adafruit Model: 4065 - Contact
Data Rate: 72.2 Mb/s
Frequency: 2.4 GHz
Dimensions: 20 mm x 12.2 mm x 2.9 mm
Unit Weight: 1 g
Output Power: 14 dBm, 17 dBm, 20 dBm
Interface Type: GPIO, HSPI, I2C, I2S, PWM, UART
Protocol Supported: 802.11 b/g/n/e/i
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 2.5 V
Supply Current Receiving: 50 mA, 56 mA
Supply Current Transmitting: 120 mA, 140 mA, 170 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
