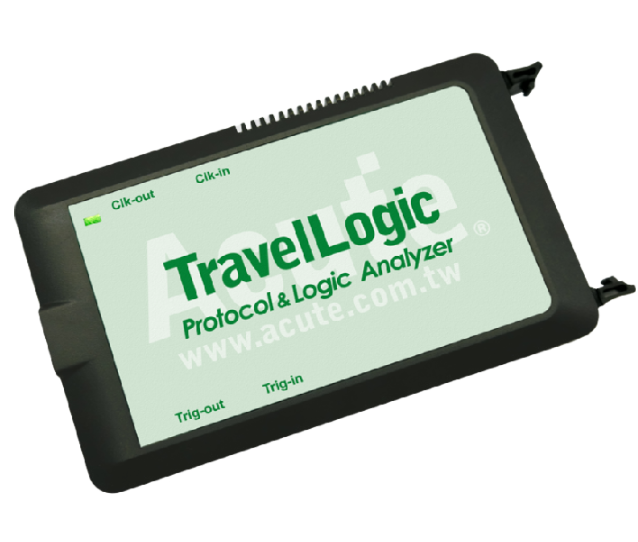

Power Source: USB bus-power (+5V)
Static Power Consumption: 0.8W
Max Power Consumption: 3W
Hardware Interface: USB 3.0
Timing Analysis (Asynchronous，Max. Sample Rate): 2GHz
State Clock Rate (Synchronous，External Clock): 250MHz
Storage: Conventional Timing, Transitional Timing
Channels: 34
Total Memory: 4Gb
Timing Analysis: Available Chs (Conventional / Transitional Timing) - Memory per Ch
4GHz Timing [Available Chs] - Memory per Ch
2GHz Timing [Available Chs] - Memory per Ch: [8/7]-512Mb
1GHz Timing [Available Chs] - Memory per Ch: [16/14]-256Mb
500MHz Timing [Available Chs] - Memory per Ch: [32/28]-128Mb
250MHz Timing [Available Chs] - Memory per Ch: [32/32]-128Mb
Channel to channel skew: < 1ns
Input channels: N/A
Input impedance: 200KΩ//<7pF
Max. (Non-destructive): ±30V DC, 12Vpp AC
Input operation: ±10V
Input sensitivity: 0.25Vpp @50MHz, 0.5Vpp @150MHz, 0.8Vpp @250MHz
Threshold group: 4 (ch0~7, ch8~15 & clk0, ch16~23, ch24~31 & clk1)
Threshold range: ±5V
Threshold resolution: 50mV
Threshold accuracy: ±100mV + 5%*Vth
Trigger resolution: 500ps
Trigger types: Channel, Pattern, Single / Multi Level, Width, Time-out, Setup / Hold Timing Violation, External, Manual
Protocol Trigger
BiSS-C, CAN2.0B/CAN FD, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MIPI I3C 1.1, SENT, SPI, UART (RS232), USB PD 3
Protocol Analyzer
BiSS-C, CAN2.0B/CAN FD, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MIPI I3C 1.1, SPI, UART (RS232), USB PD 3
